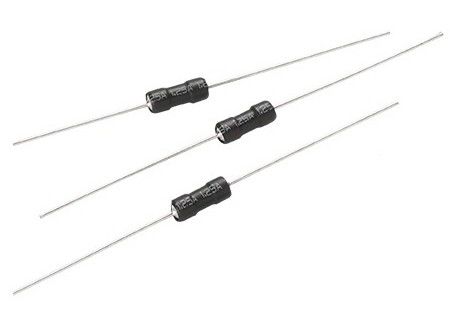

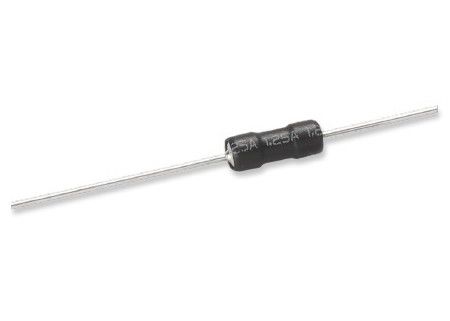

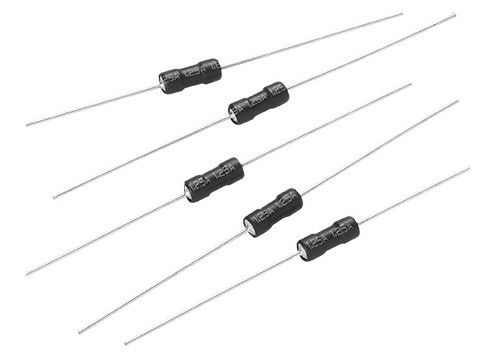

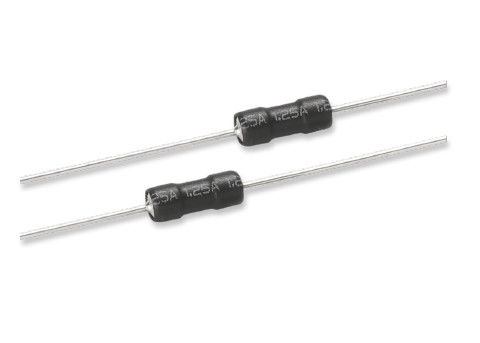

Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Description
PMU ceramic tube fuse with black heat shrink tube is a customized example.Also other dimension can be available with customzed such as lead shaping, add heat shrink tube etc with low cost,no matter it is glass fuse or ceramic fuse, below is availabile list
| Glass Fuse | |
| STP Series 3.6x10mm 250V 0.5A-20A Time-Lag | SFP Series 3.6x10mm 250V 0.5A-20A Fast-acting |
| STC Series 5X20mm 250V 0.5A-20A Time-Lag | SFC Series 5*20mm 250V 0.5A-20A Fast-acting |
| BMT Series 6*30mm 250V 0.5A-20A Time-Lag | BMF Series 6*30mm 250V 0.5A-20A Fast-acting |
Advantage
Low cost extra services
Customer can use directly
Fuse with global certificates
Proper processing
Approval
TUV 1.25A~2A
Recognized Component for Canada and U.S. 500mA~6.3A
KTL 1.25A
CQC 1.25A~2A
Electrical Characteristic
| Rated current | 1 In | 2 In |
| Min. | Max. | |
| 1.25A/1.6A | 4 hour | 60 sec |
Ordering Information
| PN | Ampere Rating [ In ] |
Voltage Rating ( V ) |
Nominal Resistance Cold Ohms |
Nominal Melting I t A Sec |
Voltage Drop(mv) MAX |
| PMU 1.25 | 1.25A |
250V |
0.540 | 3.010 | 300 |
| PMU 1.6 | 1.6A | 0.0446 | 3.460 | 400 |
Interrupting Rating
70 amperes at 250V AC
Environmental Specification
-55°C to +125°C
Mechanical Dimension(mm)
Physical Specification
Material
Ceramic Body / Nickel Plated Brass Caps
Lead Wire: Diameter 0.6 mm
