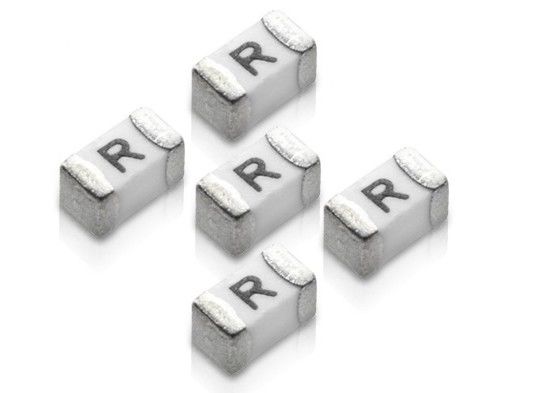

1.6x0.8x0.8mm CQ06LF Type Ceramic Cartridge Chip Fuse 0603 3 Amp 32Vdc Fast Acting
Description
Ceramic Chip Fuse is the new innovative product with cavity structure that the element and cavity have been buried in ceramic body.
Special element design has excellent performance tolerance for inrush currents and good fusing characteristics.
Ceramic Chip fuse is developed of size 1206 and 0603, and having fusing characteristics of very fast-acting and time-lag.
For current rated up to 20A and voltage rated up to 125V, it can provide a variety of combination for customers.
The product is designed by Eco-friendly concept, which is not only meeting RoHS compliance,
but also having UL safety approval and several countries patents including Taiwan, China, Japan, Germany and America.
It’s suitable for all types of consumer electronics products.
Characteristics
High voltage and hight current rating
High inrush and high breaking capacity
Fast arcing extinguished
Lead free & halogen free material
God explosion proof
Precise fusing time and cut-off completed
Suitable for rated current of 1a to 8a
Approval UL Recognized 1A~8A
Interrupting Rating 35 amperes at 63V DC / 60 amperes at 32V DC
Soldering Method *Reflow Soldering : 260°C, 30Sec. max. *Wave Soldering : 260°C, 10Sec. max. *Hand Soldering : 350°C, 3Sec. max.

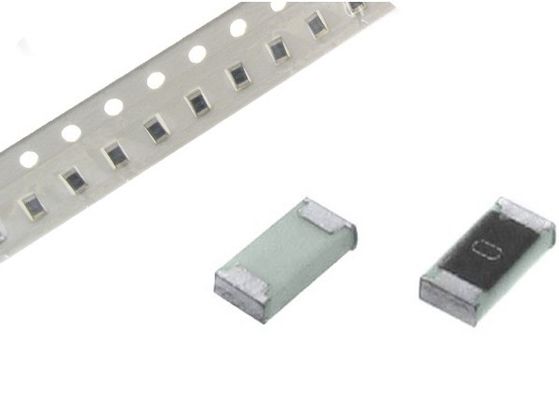

Tape & Reel Quantity : 4000pcs per reel
Dimension
Specification
| Product Type | Printing |
(A) |
(V) |
cold resistance | maximum voltage drop | I²T value | Breaking capacity | Weight(single product) |
| CQ06LF 001 | H | 1A | 32V | 0.3 | 0 | 0.041 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 002 | N | 2A | 32V | 0.066 | 0 | 0.098 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 003 | P | 3A | 32V | 0.027 | 0 | 0.187 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 004 | S | 4A | 32V | 0.018 | 0 | 0.331 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 005 | T | 5A | 32V | 0.012 | 0 | 0.57 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 006 | U | 6A | 32V | 0.009 | 0 | 0.752 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 007 | V | 7A | 32V | 0.008 | 0 | 1.078 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 008 | W | 8A | 32V | 0.006 | 0 | 1.472 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 1.50 | K | 1.5A | 32V | 0.16 | 0 | 0.083 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 2.50 | O | 2.5A | 32V | 0.038 | 0 | 0.126 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
| CQ06LF 3.50 | R | 3.5A | 32V | 0.02 | 0 | 0.258 | 35 amperes at 63V DC 60 amperes at 32V DC |
0.0152 |
Electrical Characteristic
| Rated Current | 1 In | 2 In | 3 In | 10 In |
| MIN | MAX | MAX | MAX | |
| 1A~8A | 4HR | 5sec | 0.5sec | 0.02 sec |
Environmental Temperature at 25°C
Application
•Cell phones
•Battery packs
•Digital cameras
•DVD players
•Hard disk drives
•Automotive electronics
Material
Construction Body Material: Ceramic
Termination Material: Silver(Ag),Nickel(Ni),Tin(Sn)
Fuse Element: Silver(Ag)
Environmental Specification
Operating Temperature--55°C to +125°C
Thermal Shock--MIL-STD-202G,Method 107,Condition B (-65°C to +125°C)
Vibration--MIL-STD-202G,Method 204,Test Condition C
Moisture Resistance--MIL-STD-202G,Method 106,10 day cycle
Solderability-- IPC-J-STD-002C
Fuses
What are fuses? They are protectors that prevent electronic and electrical equipment from overload current damage.Current flew to circuit via fuse until over the specifications of fuse.At That time, the fuse "Blows" and stops the current.
