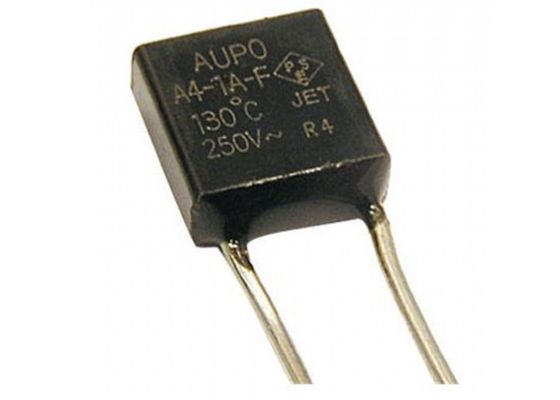

Aupo Thermal Cutoff Fuse TF 115℃ 250V 1A A2-1A-F Square Alloy Temperature Fuse With UL CUL VDE PSE CCC KTL Certificates
General
The AUPO was established in 1986. We are an advanced high-tech enterprise that specialized in thermal links (thermal protectors) research and development, production and sale. Now we have developed more than 10 series 100 models of thermal links, and our annual productivity achieves 1 billion pieces. The AUPO strictly operates under superior management system and quality assurance system based on ISO9001. Also our products have been recognized and certificated by a number of domestic and foreign safety laboratories including UL, CUL, VDE, TUV, CSA, PSE, KTL-EK, CCC, and so on. Our own laboratory has been certified by UL and VDE as the witness laboratory.
Features
Extremely sensitive to ambient temperature
Precise and stable functioning temperature
Compact and reliable
Epoxy sealed structure
Approved by various international standards
Application
Communications
Auto
Household electrical appliances
Major Appliances
Photoelectricity
Electric motorcar
Industrial control and automation
Dimension
Part Numbering
| Model NO | Rated functioning temp. | Fusing-off temperature IEC | Fusing-off temp Corp | Holding temperature | Maximum temp .limit | Rated current | Rated voltage |
| (Tf) | (Th) (℃) | (Tm) (℃) | (Ir) | (Ur) | |||
| A0-1A-F | 84℃ | 74-84 | 80-84 | 65 | 203 | 1A | 250V |

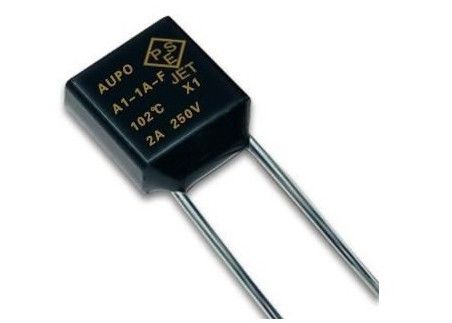

| A1-1A-F | 102℃ | 92-102 | 96-100 | 80 | 203 | 1A | 250V |

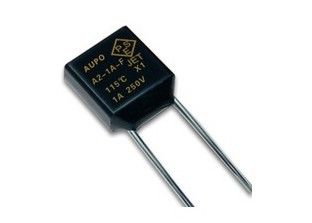

| A2-1A-F | 115℃ | 105-115 | 109-115 | 99 | 203 | 1A | 250V |
| A3-1A-F | 125℃ | 115-125 | 117-123 | 105 | 203 | 1A | 250V |
| A4-1A-F | 130℃ | 120-130 | 124-128 | 107 | 203 | 1A | 250V |

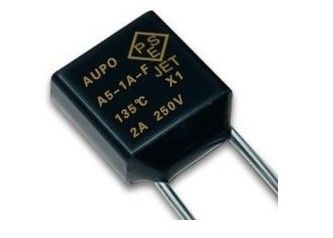

| A5-1A-F | 135℃ | 125-135 | 128-134 | 115 | 203 | 1A | 250V |
| A7-1A-F | 138℃ | 128-138 | 133-137 | 118 | 203 | 1A | 250V |
| A12-1A-F | 145℃ | 135-145 | 138-142 | 126 | 203 | 1A | 250V |
| A8-1A-F | 150℃ | 140-150 | 142-148 | 128 | 203 | 1A | 250V |
| A16-1A-F | 160℃ | 150-160 | 153-157 | 140 | 203 | 1A | 250V |
Features and Benefits
PCB Wire Ended
Thermal fuses protect equipment against fire or thermal damage due to overload or overcharge. Suitable for use with standard single phase supplies up to 250V (230V typical). Temperature gradient: 1°C per minute.
Internal Resistance Test of A Series
* Test method: Measure the resistance between both lead wires at the distance of 10mm as shown in figure.
*Standard:Internal resistant should be less than 15 mΩ
* Test result:Normal
| Model | A1-F | A2-F | A3-F | A4-F | A5-F | A7-F | A8-F |
| Standard(mΩ) | Below 15 | Below 15 | Below 15 | Below 15 | Below 15 | Below 15 | Below 15 |
| Max.(mΩ) | 6.4 | 5.96 | 5.67 | 5.43 | 6.62 | 6.75 | 6.69 |
| Min.(mΩ) | 5.3 | 5.13 | 5.04 | 4.92 | 5.56 | 5.84 | 6.03 |
| Average (mΩ) | 5.8 | 5.54 | 5.31 | 5.25 | 5.99 | 6.17 | 6.37 |
