Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply

1 Reel
MOQ
Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Surface Mount Power Inductors
Size: 2.0x1.6x1.0mm-13.8x12.6x6mm
Coil: 0.24~2.2uH
Rated Current: 4.8~2.2A
Tolerance: ±20%
DCR: Max. 1.092 Ohm
Isat: Max 0.65A
Irms: Max. 0.50A
SRF: Min. 27 MHZ
Package: Surface Mount
Highlight:

wireless charging receiver coil

,

pcb wireless charging coil
Basic Infomation
Brand Name: AOLITTEL
Model Number: CK Series
Payment & Shipping Terms
Packaging Details: Tape in reel
Delivery Time: 7-10 Workdays
Payment Terms: T/T, Western Union
Supply Ability: 1000,000,000PCS Per Month
Product Description



Non-shielded Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply





Features



1. Small and very Thin inductor

2. Magnetic-resin shielded conruction reduces buzz noise to ultra-low levels

3. Takes up less PCB real estate and save more power





Application



1. LED Lighting

2. Automotive systems

3. Notebooks,desktop computers,servers,graphic cards





Specification



● CKST

Product Picture Size(LxWxH) Coil Rated Current Series

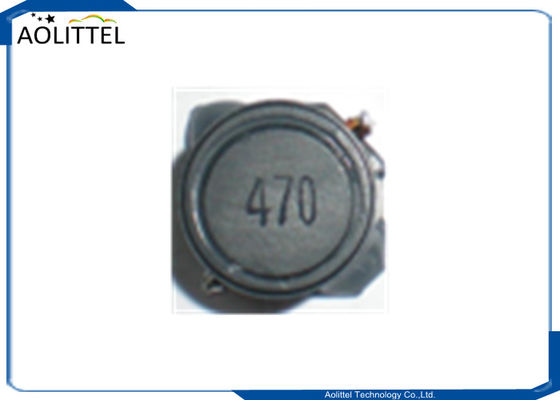

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 0 2.0x1.6x1.0mm 0.24~2.2uH 4.8~2.2A CKST201610
2.5x2.0x1.0mm 0.24~2.2uH 6.5~2.5 CKST252010
2.5x2.0x1.2mm 0.24~2.2uH 7.3~2.9 CKST252012
3.2x2.5x1.0mm 0.24~2.2uH 6.8~2.8 CKS322510
3.2x2.5x2.5mm 1.0~2.2uH 4.3~3.3 CKS322525
4.6x4.1x2mm 0.1 ~ 10uH 12.0~1.6 CKST0402
5.7x5.1x3mm 0.47 ~ 15uH 10.0~1.8 CKST0503
7.4x6.6x3mm 0.1 ~ 33uH 32.0~2.0 CKST0603
11.6x10.1x3mm 0.22 ~ 22uH 30.0~3.0 CKST1003
11.6x10.1x4mm 0.36 ~ 33uH 34.0~3.0 CKST1004
13.8x12.6x5mm 0.36 ~ 10uH 41.0~8.0 CKST1205
13.8x12.6x6mm 6.8 ~ 150uH 18.0~2.0 CKST1206



● CKCS

Product Picture Size(LxWxH) Coil Rated Current Series

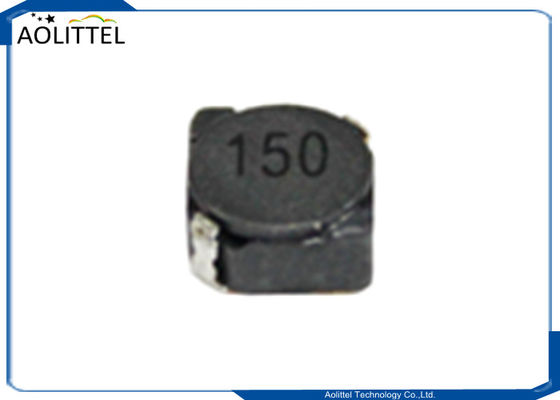

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 1 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCS252010
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCS252012
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCS3010
3.0x3.0x1.2mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCS3012
3.0x3.0x1.5mm 1uH ~ 150uH 0.18 ~ 2.32A CKCS3015

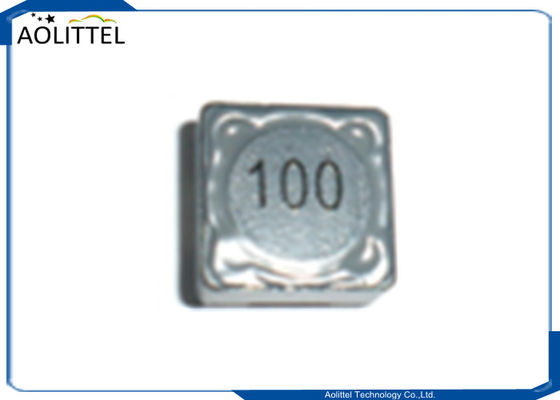

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 2 4.0x4.0x1.2mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCS4012
4.0x4.0x1.8mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCS4018
4.0x4.0x2.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCS4020
4.0x4.0x3.0mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCS4030
5.0x5.0x2.2mm 1uH ~ 150uH 0.18 ~ 2.32A CKCS5020
5.0x5.0x4.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCS5040
6.0x6.0x2.0mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCS6020
6.0x6.0x2.8mm 1uH ~ 56uH 0.21 ~ 1.4A CKCS6028
6.0x6.0x4.7mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCS6045
8.0x8.0x4.2mm 1uH ~ 150uH 0.18 ~ 2.32A CKCS8040



● CKCSA

Product Picture Size(LxWxH) Coil Rated Current Series

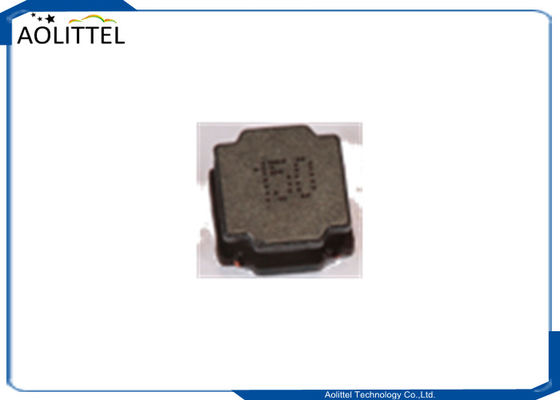

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 3 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCS252010
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCS252012
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCS3010
3.0x3.0x1.2mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCS3012
3.0x3.0x1.5mm 1uH ~ 150uH 0.18 ~ 2.32A CKCS3015



● CKCH

Product Picture Size(LxWxH) Coil Rated Current Series

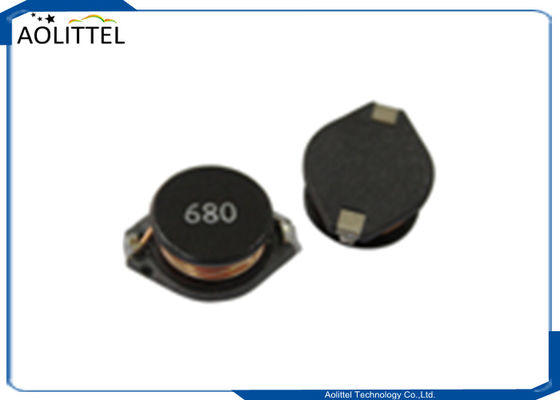

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 4 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCH73
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCH74
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCH105
3.0x3.0x1.2mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCH124
3.0x3.0x1.5mm 1uH ~ 150uH 0.18 ~ 2.32A CKCH125
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCH127
3.0x3.0x1.2mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCH129
3.0x3.0x1.5mm 1uH ~ 150uH 0.18 ~ 2.32A CKCH1510



● CKCD

Product Picture Size(LxWxH) Coil Rated Current Series

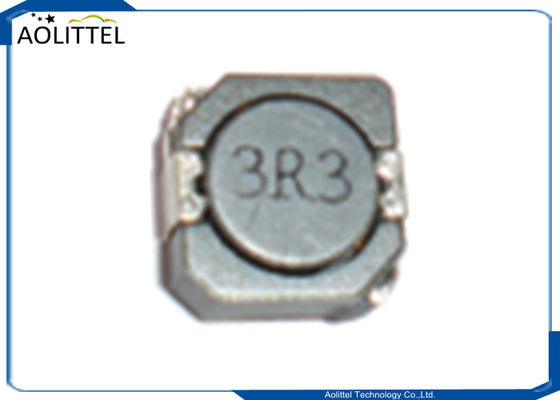

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 5 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCD2D18
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCD3D16
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCD4D18
3.0x3.0x1.2mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCD4D28
3.0x3.0x1.5mm 1uH ~ 150uH 0.18 ~ 2.32A CKCD5D18
2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCD5D28
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCD6D28
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCD6D38
3.0x3.0x1.2mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCD8D28
3.0x3.0x1.5mm 1uH ~ 150uH 0.18 ~ 2.32A CKCD8D38
3.0x3.0x1.2mm 0.82uH ~ 100uH 0.21 ~ 2.05A CKCD8D43
3.0x3.0x1.5mm 1uH ~ 150uH 0.18 ~ 2.32A CKCD8D58



● CKCR

Product Picture Size(LxWxH) Coil Rated Current Series

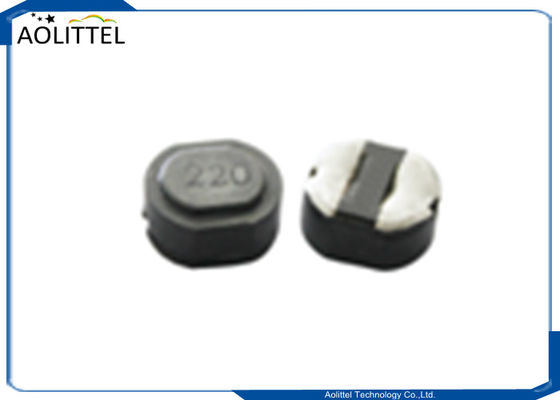

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 6 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCR103
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCR104
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCR105



● CKCBA

Product Picture Size(LxWxH) Coil Rated Current Series

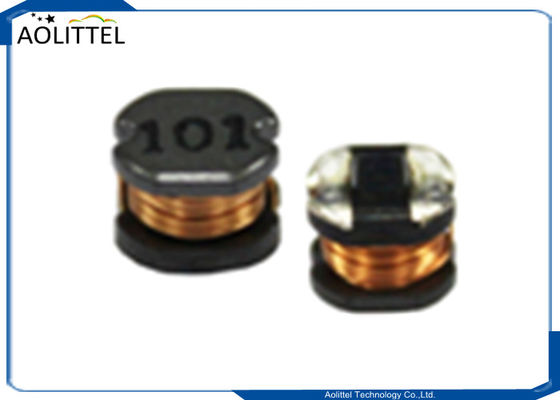

Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 7 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCBA63
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCBA74
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCBA105



● CKOB

Product Picture Size(LxWxH) Coil Rated Current Series
Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 8 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKOB1608
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKOB1306
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKOB1312
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKOB1808



● CKCF

Product Picture Size(LxWxH) Coil Rated Current Series
Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 9 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKCF63
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKCF73
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCF75
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCF104
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCF124
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKCF127



● CKO

Product Picture Size(LxWxH) Coil Rated Current Series
Non - Shielded Surface Mount Power Inductors SMD 10uH 0.65A For Power Supply 10 2.5x2.0x1.0mm 0.47uH ~ 10uH 0.65 ~ 2.5A CKO31B
2.5x2.0x1.2mm 0.47uH ~ 22uH 0.53 ~ 3.82A CKO32
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKO43
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKO52
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKO53
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKO54
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKO73
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKO75
3.0x3.0x1.0mm 1uH ~ 56uH 0.21 ~ 1.4A CKO105
