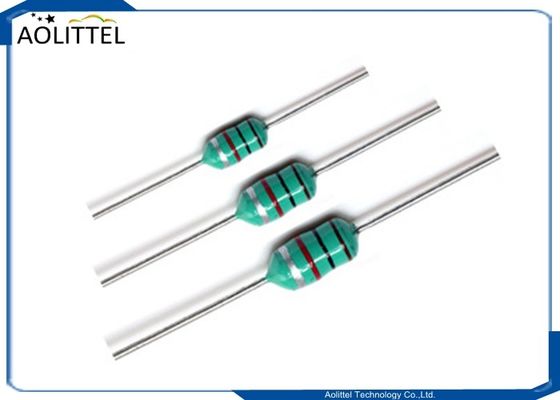

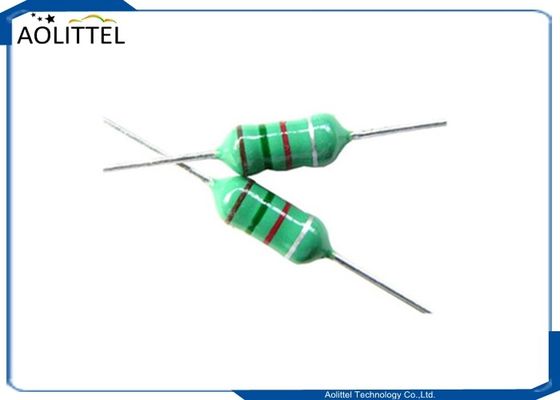

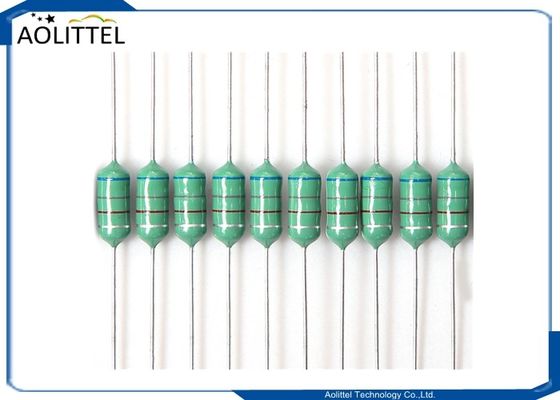

AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy

2000 PCS
MOQ
AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Color Code Inductor
Inductance: 3.3UH±10%
DCR: 340mΩ MAX
Isat: L≧L0*90%
Pin: Tinned Copper Clad Steel Wire
Epoxy Resin: FK661
Wire: 2UEW-F(QA)
Solder: Sn:99.3%/Cu:0.7%
Epoxy Paint: DGT-1(green)
Core: DRWW3*6
High Light:

wireless charging receiver coil

,

pcb wireless charging coil
Basic Infomation
Place of Origin: Dongguan,China
Brand Name: AOLITTEL
Model Number: 9.1.0410.3R3.01
Payment & Shipping Terms
Packaging Details: Tape,2000PCS/BOX,255*70*93mm; 48000pcs/Carton,440*275*392mm
Delivery Time: 7-10 workdays
Payment Terms: T/T
Supply Ability: 4,800,000,000PCS Per Month
Product Description



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy





Our products are designed and promoted for use in general electronic devices such as audio-video equipment, office automation equipment, home appliance and information service.Communication,Electric light source,Toy,The PC and the surrounding,Industrial control,Home appliances and other





Dimension



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 0

A 4.0MAX C 0.6±0.1
B 10.0 MAX
Identification 1-Orange,2-Orange,3-Gold,4-Sliver





Schematic Diagram



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 1





Winding Structure Diagram



WINDING S F WIRE TURNS WINDING WAY
N1 S F 2UEW-0.12mm 15TS Ref. Smooth winding





Electrical parameters



TEST PROJECT SPEC TEST FREQ TEST STRUMENTS
L 3.3UH±10% at 25℃ 1KHZ/0.25V TH2829A
DCR 340mΩ MAX at 25℃ 1KHz/0.25V HK-100
Isat L≧L0*90% at 25℃ DC670mA 1KHz/0.3V TH2829A





BOM



MATERIAL SPECIFICATIONS MANUFACTURERS
PIN Tinned copper clad steel wire BAICHUAN
OR Equivalent supplier
EPOXY RESIN FK661 QI FU
OR Equivalent supplier
WIRE 2UEW-F(QA) GANYUE HENGXING(E233255)
OR Equivalent supplier
SOLDER Sn:99.3%/Cu:0.7% SONGBEN
OR Equivalent supplier
EPOXY PAINT DGT-1(green) FUXIN
OR Equivalent supplier
CORE DRWW3*6 JIACHENG
OR Equivalent supplier





Test Report



TEST CONDITION: TEMP:25℃(REF)  R.H.:80%(REF)



Item Range Test data
Test project Spec 1 2 3 4 5
L 3.3UH±10% 3.33 3.32 3.30 3.32 3.33
DCR 340mΩ MAX 170 170 170 170 170
Isat L≧L0*90% OK OK OK OK OK



No. Item Requirements Result
1 Apperance,size Comply with size request and tolerance OK
2 Pin pull-out force More than 1Kg OK





Packaging



Inner box :255*70*93mm

Outer carton: 440*275*392mm

2000pcs/inner box ,24 boxes per out carton 48000pcs





Packaging sketch photo



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 2



Packaging according to customer’s requirement.





Test Equipments



1.Inductance(L):HM-9481/TH-2829A；
2.Q:HM-9481；
3.DCR:CH-502BC/TH-2829A；
4.SRF:HM-9461；
5.Isat:TH-2829A/TH-1772B+TL-2812D；
Test Condition: at 25℃,75%H.





Process route



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 3





Specification for all color code inductor 0307 0410 0510 0512



Appearance Dimensions



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 4



Electrical Characteristics



AL0307 Series



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 5



AL0410 Series



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 6

AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 7



AL0510 Series



AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 8

AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 9

AL0512 Series

AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 10

AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 11



Note: data in this document only provides the main products, so you want to order or learn more about the product related information, please
contact us for the latest and most complete product information





Product packaging



Bulk

AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 12

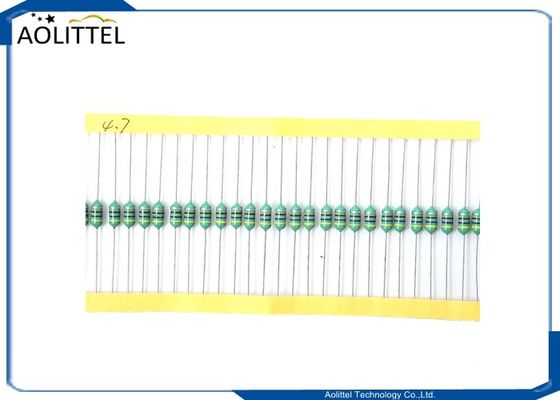

Tape

AL Series Solid Structure Color Codes Fixed Inductor 0410 3.3uH 10% 1KHZ High Q Value For Toy 13
