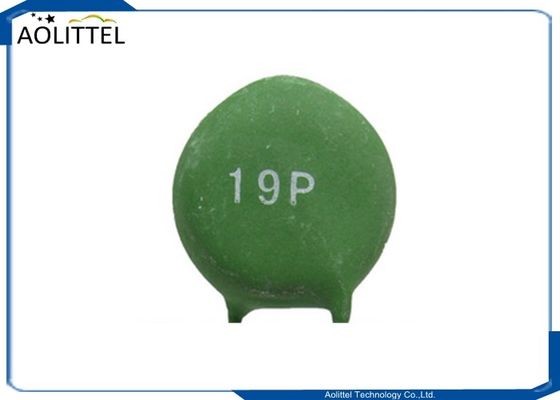

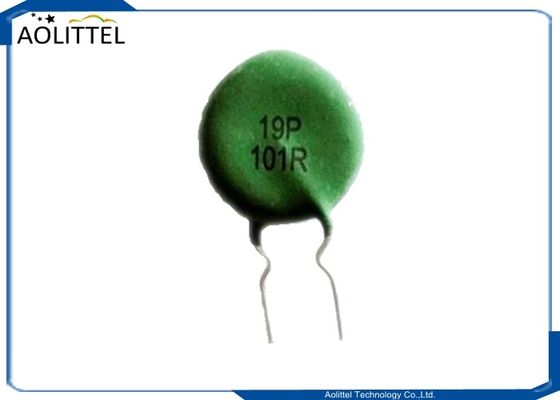

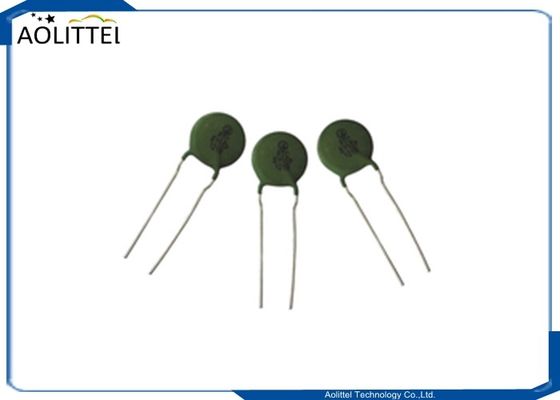

MZ21 Seires Disk Positive Temperature Coefficient Thermistor 19P 18mm 100R 120C 600V For Welding Machine


MZ21 Seires Disk Positive Temperature Coefficient Thermistor 19P 18mm 100R 120C 600V For Welding Machine


Working Principle

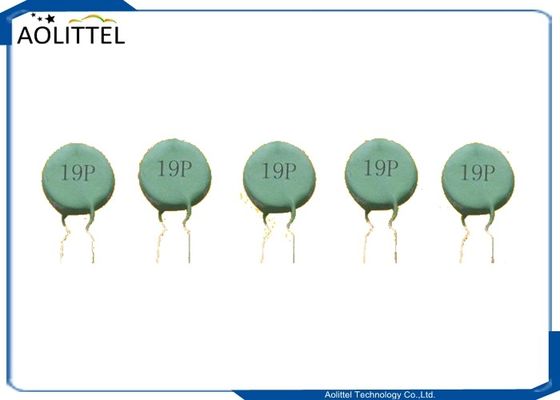

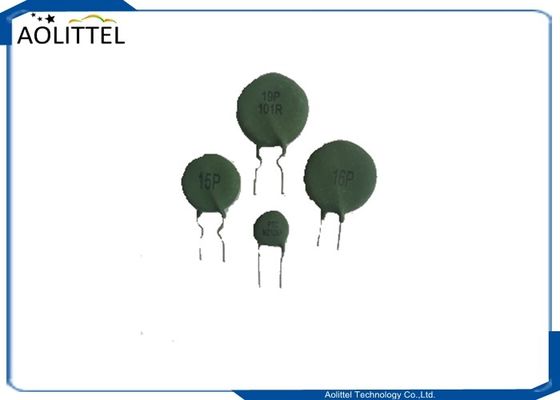

15P (100R) 16P (5R) 19P (100R) MZ126A (12R)
Connect the PTC thermistor in series in the load circuit. When the circuit is in normal working condition, the current through the PTC thermistor is less than the rated current. The PTC thermistor is in the normal state and the resistance is small, which will not affect the normality of the protected circuit. jobs. When the circuit fails, the current greatly exceeds the rated current (2 times of the normal working current), and the PTC thermistor suddenly heats up, showing a high resistance state, so that the circuit is in a relatively "off" state for protection purposes. When the fault is removed, the PTC thermistor automatically returns to a low impedance state and the circuit resumes normal operation.


Application

Switching power supply
Transformer,adapter,charge
Electronic coil,control panel
Household appliances(air condition,oven)
Electronic circuit
Instrument



Application-Other part

Inverter welding machine is more and more popular in the world since technoloy required for manufacturing, however, good protection can assured inverter welding machine functioning well for long term. We can supply all set of components for overcurrent protection / overvoltage protection. Below is lists we supplying our customers for your ref:




Dimension (mm)




Electrical Performances




Part Numbering

MZ 2 1 - P 101 R M N
① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① : PTC Thermistor
② : Product type 2-Current Limiter 3- Delay Time
③ : 1-Coating type 2-Plastic Type 3-Empty type
④ : Switch temperature P 120C
⑤ : Resistance value- 100 Ohm
⑥ : Ohm
⑦: Tolerance K:±10%, M:±20%, N:±25%
⑧: Diameter of Chip N:Ф18mm


Resistance-Temperature curve




Current-time curve





Manufacturing Process

Weighing ⇒ Ball Milling ⇒ Presintering ⇒ Granulation ⇒ Forming ⇒ Sintering ⇒ Add electrode ⇒ Resistance sorting ⇒ Pressure line ⇒ Package insulation ⇒ Assembly ⇒ Withstand voltage detection ⇒ Resistance Inspection ⇒ Final inspection ⇒ Packaging ⇒ Put into warehouse .


Manufacturing Scene
