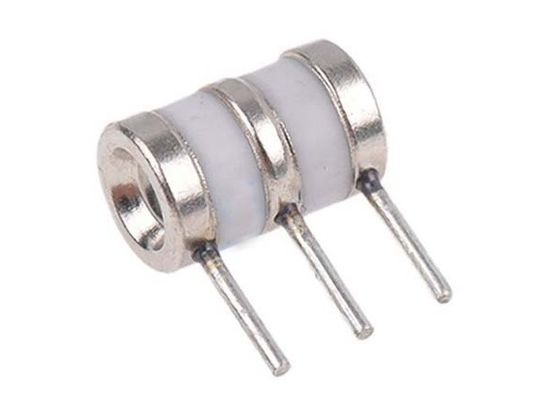

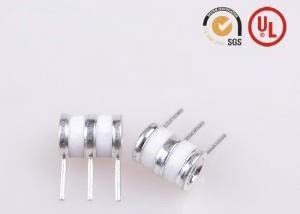

Micro-Gap Design 11.5mmx7.5mm Sized Gas Discharge Tube GDT SE72-600X 600V 20KA 3PIN For Cable Modem

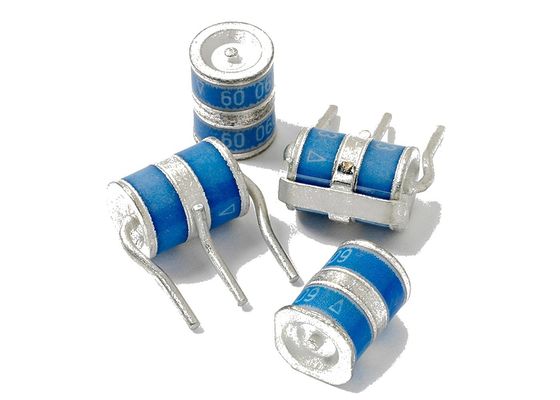

GDT introduction
Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Surging offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).
Features
• RoHS & HF compliant
• Size:11.5mm*7.5mm
• DC Spark-over voltage: 75~800V
• Stable breakdown voltage.
• High insulation resistance.
• High holdover voltage.
• Large absorbing transient current capability.
• Low Capacitance
• Micro-Gap Design
• Small order accepttable
Application
• Cable Modem
• xDSL
• Set-Top Box
• Satellite and CATV equipment
• Power supplier
• Consumer electronics
• General telecom equipment
• SPD
Electriacl Characteristics
| Part. Number |
DC Spark-over Voltage(V) |
1KV/μs (V) |
8/20μs (10 time) (KA) |
DC Holdover Voltage(V) |
AC50Hz 1sec(A) |
Insulation Resistance (GΩ) |
Capacitance 1MHz(PF) |
Impulse Life(10/1000μs)@100A |
| SE72-75X |
75±20% |
700 |
20 |
52 |
10 |
1 |
2 |
300 |
| SE72-90X |
90±20% |
700 |
20 |
52 |
10 |
1 |
2 |
300 |
| SE72-150X |
150±20% |
700 |
20 |
135 |
10 |
1 |
2 |
300 |
| SE72-200X |
200±20% |
700 |
20 |
135 |
10 |
1 |
2 |
300 |
| SE72-230X |
230±20% |
700 |
20 |
150 |
10 |
1 |
2 |
300 |
| SE72-250X |
250±20% |
700 |
20 |
150 |
10 |
1 |
2 |
300 |
| SE72-350X |
350±20% |
800 |
20 |
150 |
10 |
1 |
2 |
300 |
| SE72-400X |
400±20% |
900 |
20 |
150 |
10 |
1 |
2 |
300 |
| SE72-470X |
470±20% |
1000 |
20 |
150 |
10 |
1 |
2 |
300 |
| SE72-600X |
600±20% |
1100 |
20 |
150 |
10 |
1 |
2 |
300 |
Dimension--"72" (Axial lead type)
Packaging Bulk (mm)
Telcome Network Application
