SMT Transient Suppressors Chip Metal Oxide Varistor MVR3220-471G 35pF 450A Clamping 775V Varistor 470V 3220 (8552M) Case

1 Reel
MOQ
0.5 ~ 0.8 USD/PCS
Price
SMT Transient Suppressors Chip Metal Oxide Varistor MVR3220-471G 35pF 450A Clamping 775V Varistor 470V 3220 (8552M) Case
Features Gallery Product Description Request A Quote
Features
Specifications
Varistor Type: Chip Varistor
Varistor Voltage: 470V
Max. AC Voltage Rating: 300V
Max. DC Voltage Rating: 385V
Clamping Voltage: 775V
Energy Absorption 10/1000µs: 18J
Surge Current: 450A
Capacitance: 35pF
Dimensions: 8.51 X 5.26 X 2.03mm
Package: 3220 (8552M)
High Light:

zinc oxide varistor

,

mov metal oxide varistor
Basic Infomation
Place of Origin: China
Model Number: MVR3220-471G
Payment & Shipping Terms
Packaging Details: Tape in reel
Delivery Time: 2 Weeks
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000 PCS/Month
Product Description



SMT Transient Suppressors Chip Metal Oxide Varistor MVR3220-471G 35pF 450A Clamping 775V Varistor 470V 3220 (8552M) Case





Description

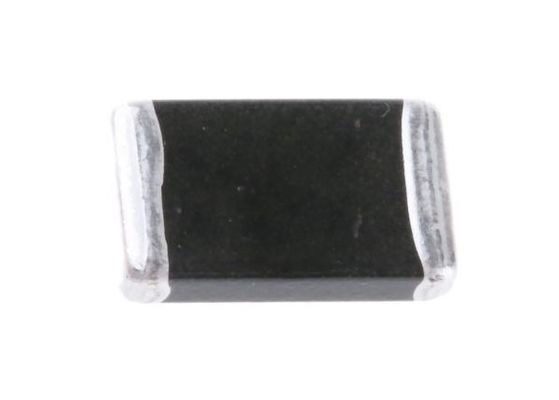

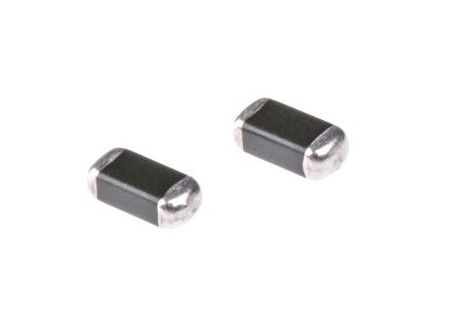

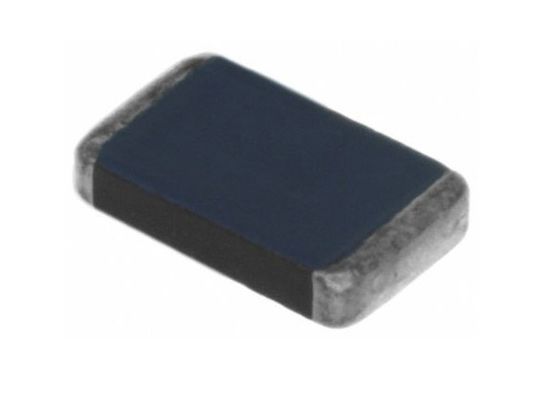

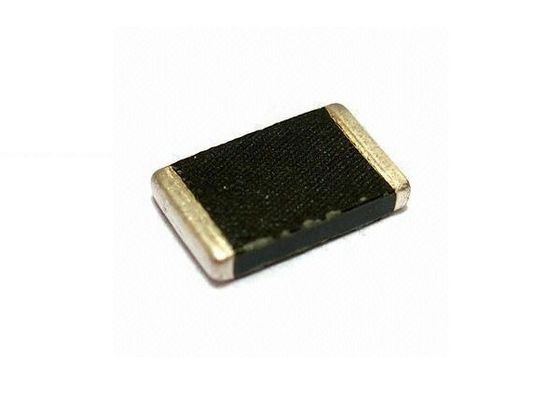

Aolittel MVR Series offers the designer a surface mount solution with higher voltage ratings and transient energy ratings than typical multi-layer varistors (MLVs). Think of this series as surface mountable MOVs. This series, based on our proven zinc oxide formulation, operates from -55ºC to 125ºC. Additionally, the top and bottom surfaces of the chip are protected with a glass coating.



Higher voltage rating and transient energy rating than typical multi-layer ceramic varistors
Proven Zinc Oxide formulation
Top and bottom surfaces glass coated
Radial MOV replacement
Dimensions (mm) : 8.5x5x2



SMT Transient Suppressors Chip Metal Oxide Varistor MVR3220-471G 35pF 450A Clamping 775V Varistor 470V 3220 (8552M) Case 0





Application



• MOV (Radial) Replacement

• Suppression of transient on line voltage

• Electric Meters

• Industrial Equipment

• Mains PSUs

• Telecommunications

• Consumer Electronics





Size(mm)



SMT Transient Suppressors Chip Metal Oxide Varistor MVR3220-471G 35pF 450A Clamping 775V Varistor 470V 3220 (8552M) Case 1





Electrical Performances



Part
Number
Working
Breakdown
Clamping
Peak Current
Voltage
Voltage
Voltage
AC
DC
@ 1mA DC
8/20uS
8/20uS(A) Ip(MAX)
VAC
VDC
VB
VC
0603
0805
1206
1210
1812
2220
3220
MVR3220-3R0G
1.4
2
3
2.4～3.6
9
20






MVR3220-5R0G
2.4
3.3
5
4.0～6.0
12
20
60
80




MVR3220-8R0G
4
5.5
8
7.0～10.5
14
20
60
80
250
400


MVR3220-120G
7
9
12
10～14
24
20
60
80
250
400
800

MVR3220-180G
11
14
18
15.5～21
30
20
80
100
250
400
800
500
MVR3220-240G
14
18
24
22-27
38
20
80
100
250
500
1200
500
MVR3220-270G
17
22
27
24～30
42
20
80
100
250
500
1200
500
MVR3220-330G
20
26
33
29～36
54
20
80
100
250
500
1200
500
MVR3220-390G
24
30
39
35～42
65
20
80
100
250
500
1200
500
MVR3220-470G
28
36
47
42～52
77
20
80
100
250
500
1200
500
MVR3220-560G
35
45
56
50～62
90

80
100
250
500
1200
500
MVR3220-680G
40
56
68
60～75
110


100
250
500
1200
500
MVR3220-820G
50
65
82
73～91
135


80
200
300
800
500
MVR3220-101G
60
85
100
90～110
165


80
200
300
800
500
MVR3220-121G
75
100
120
108～132
200



200
300
500
500
MVR3220-151G
95
125
150
135～165
250




300
500
500
MVR3220-181G
115
150
180
162～198
300





500
500
MVR3220-201G
130
170
205
184～226
340






500
MVR3220-221G
140
180
220
198～242
360






500
MVR3220-241G
150
200
240
216～264
395






500
MVR3220-271G
175
225
270
243～297
455






500
MVR3220-361G
230
300
360
324～396
595






500
MVR3220-391G
250
320
390
351～429
650






500
MVR3220-431G
275
350
430
387～473
710






400
MVR3220-471G
300
385
470
423～517
775






400





Other Datas



1.1 Technical Data Symbol Value Unit
Maximum allowable continuous AC voltage*1 VRMS 300.0 V
Maximum allowable continuous DC voltage VDC 385.0 V
Varistor voltage Measured*2 VB 470(423-517) V
Typical capacitance value measured*3 C 35 pF
Typical capacitance value tolerance   ±30 %
Maximum clamping voltage measured*4 VC 775 V
Rated peak single pulse transient current at *5 I P 450 A
1.2 Reference Data
Maximum Energy Absorption 10/1000µs E 18.0 J
Response time T rise <2 ns
Leakage current at VDC (At initial state) IL <50 µΑ
Leakage current at VDC (After reliability Test) ILA <100 µΑ
Operating ambient temperature   -40~+125 ℃
Storage temperature   -40~+125 ℃
Reflow temperature profile(Recommend)   260 ℃
1.3 Other Data
Body ZnO
End termination Ag/Ni/Sn
Packaging Bulk/Tape
Complies with Standard IEC61000-4-5
Notes:
*1 AC voltage at 50~60Hz
*2 Varistor voltage Measured at 1mA DC
*3 Capacitance Measured at f=1MHz,Vrms=0.5V
*4 Maximum clamping voltage Measured at 10A by 8/20µs Pulse
*5 Rated peak single pulse transient current Measured by 8/20µs Pulse
