Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection

1 Reel
MOQ
Negotiable
Price
Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Product Category: SMD Metal Oxide Varistor
Termination Style: SMD/SMT
Package / Case: 1206 (3216 Metric)
Voltage Rating AC: 30V
Voltage Rating DC: 38V
Clamping Voltage: 77V
Peak Surge Current: 200A
Surge Energy Rating: 1.0 J
High Light:

mov metal oxide varistor

,

varistor surge protection
Basic Infomation
Place of Origin: CHINA
Model Number: MVR1206-470H
Payment & Shipping Terms
Packaging Details: Tape in reel
Delivery Time: 2 Weeks
Payment Terms: T/T,Paypal
Supply Ability: 1,000,000 Pieces Per Month
Product Description



Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection





Features



• SMD type metal oxide varistors
• Ideal for countermeasures against ESD (Conforming to IEC61000-4-2)
• High maximum energy type
• Low leakage current
• High resistance to cyclic temperature stress
• Suitable for both flow and reflow soldering
• Products with lead-free terminations meet EU RoHS requirements. Pb located in glass material, electrode
and varistor element is exempt per Annex 1, exemption 5 of EU directive 2005/95/EC
• AEC-Q200 Qualified

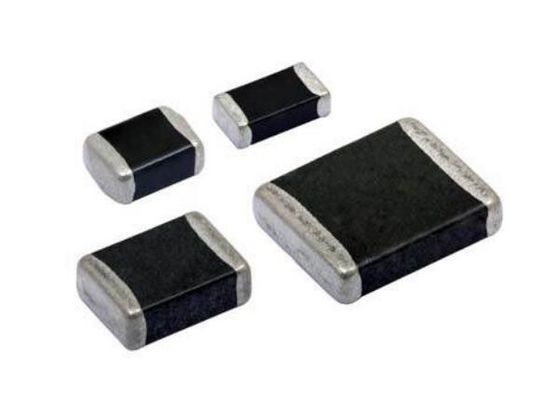

Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection 0





Electrical Ratings



Part
Number
Working
Breakdown
Clamping
Peak Current
Voltage
Voltage
Voltage
AC
DC
@ 1mA DC
8/20uS
8/20uS(A) Ip(MAX)
VAC
VDC
VB
VC
0603
0805
1206
1210
1812
2220
3220
MVR1206-3R0G
1.4
2
3
2.4～3.6
9
20






MVR1206-5R0G
2.4
3.3
5
4.0～6.0
12
20
60
80




MVR1206-8R0G
4
5.5
8
7.0～10.5
14
20
60
80
250
400


MVR1206-120G
7
9
12
10～14
24
20
60
80
250
400
800

MVR1206-180G
11
14
18
15.5～21
30
20
80
100
250
400
800
500
MVR1206-240G
14
18
24
22-27
38
20
80
100
250
500
1200
500
MVR1206-270G
17
22
27
24～30
42
20
80
100
250
500
1200
500
MVR1206-330G
20
26
33
29～36
54
20
80
100
250
500
1200
500
MVR1206-390G
24
30
39
35～42
65
20
80
100
250
500
1200
500
MVR1206-470G
28
36
47
42～52
77
20
80
100
250
500
1200
500
MVR1206-560G
35
45
56
50～62
90

80
100
250
500
1200
500
MVR1206-680G
40
56
68
60～75
110


100
250
500
1200
500
MVR1206-820G
50
65
82
73～91
135


80
200
300
800
500
MVR1206-101G
60
85
100
90～110
165


80
200
300
800
500
MVR1206-121G
75
100
120
108～132
200



200
300
500
500
MVR1206-151G
95
125
150
135～165
250




300
500
500
MVR1206-181G
115
150
180
162～198
300





500
500
MVR1206-201G
130
170
205
184～226
340






500
MVR1206-221G
140
180
220
198～242
360






500
MVR1206-241G
150
200
240
216～264
395






500
MVR1206-271G
175
225
270
243～297
455






500
MVR1206-361G
230
300
360
324～396
595






500
MVR1206-391G
250
320
390
351～429
650






500
MVR1206-431G
275
350
430
387～473
710






400
MVR1206-471G
300
385
470
423～517
775






400





Dimension (mm)

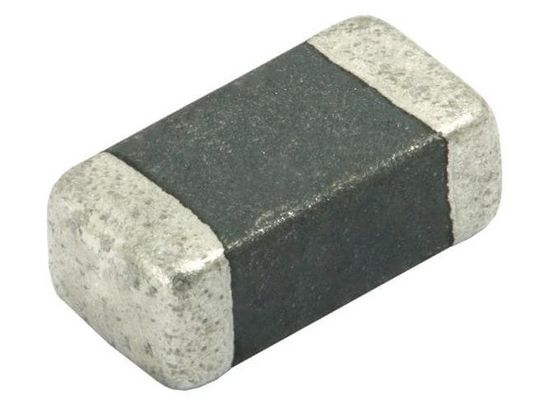

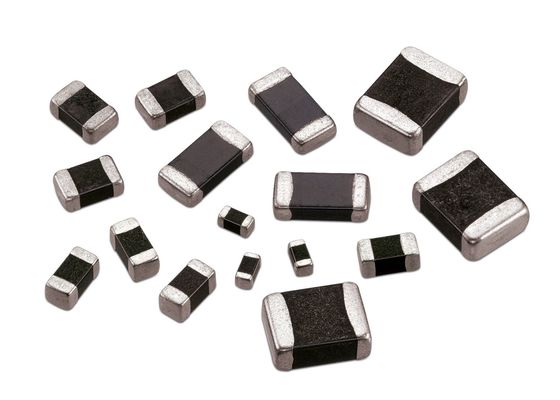

Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection 1Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection 2

Model 1005(0402) 1608(0603) 2012(0805) 3216(1206) 3225(1210) 4532(1812) 5750(2220) 8050(3220)

Length

(L)

 1.00±0.15 1.60±0.20 2.00±0.20 3.20±0.20 3.20±0.20 4.50±0.30 5.70±0.30 8.0±0.30
Width(W) 0.50±0.15 0.80±0.20 1.20±0.20 1.60±0.20 2.50±0.20 3.20±0.20 5.00±0.30 5.00±0.30
High(H) 0.70max 0.90max 1.30max 1.60max 2.50max 3.20max 4.50max 4.50max





Enviromental Reliability Test



Characteristic Test method and description
High Temperature Storage The specimen shall be subjected to 125℃ for 1000 hours in a thermostatic bath without load and then stored at room temperature and humidity for 1 to 2 hours. The change of varistor voltage shall be within 10%.
Temperature Cycle The temperature cycle of specified temperature shall be repeated five times and then stored at room temperature and humidity for one two hours. The change of varistor voltage shall be within 10%and mechanical damage shall be examined. Step Temperature Period
1 -40±3℃ 30min±3
2 Room Temperature 1~2hours
3 125±2℃ 30min±3
4 Room Temperature 1~2hours
High Temperature Load After being continuously applied the maximum allowable voltage at 85℃ for 1000hours, the specimen shall be stored at room temperature and humidity for one or hours, the change of varistor voltage shall be within 10%.

Damp Heat Load/

Humidity Load

 The specimen should be subjected to 40℃,90 to 95%RH environment, and the maximum allowable voltage applied for 1000 hours, then stored at room temperature and humidity for one or two hours. The change of varistor voltage shall be within 10%.
Low Temperature Storage The specimen should be subjected to -40℃, without load for 1000 hours and then stored at room temperature for one two hours. The change of varistor voltage shall be within 10%.





Packaging Specification



1.Carrier tape transparent cover tape should be heat-sealed to carry the products, and the reel should be used to reel the carrier tape.
2 The adhesion of the heat-sealed cover tape shall be 40﹢20/﹣15 grams.
3 Both the head and the end portion of taping shall be empty for reel package and SMT auto-pickup machine. And a normal paper tape shall be connected in the head of taping for the operator handle.

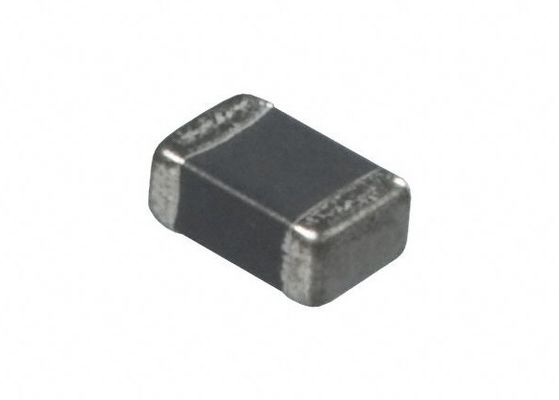

Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection 3

Type

A0

±0.10

B0

±0.10

K0

±0.10

T

±0.05

T2

±0.05

D0

+0.10

D1

±0.05

P1

±0.10

P2

±0.05

P0

±0.05

W

±0.20

E

±0.10

F

±0.05
0402 1.08 1.88 1.04 0.22 0.87 1.50 1.00 4.00 2.00 4.00 8.00 1.75 3.50
0603 1.08 1.88 1.04 0.22 1.17 1.50 1.00 4.00 2.00 4.00 8.00 1.75 3.50
0805 1.42 2.30 1.04 0.22 1.26 1.50 1.00 4.00 2.00 4.00 8.00 1.75 3.50
1206 1.88 3.50 1.27 0.20 1.49 1.50 1.00 4.00 2.00 4.00 8.00 1.75 3.50
1210 2.18 3.46 1.45 0.22 1.77 1.50 1.00 4.00 2.00 4.00 8.00 1.75 3.50
1812 3.66 4.95 1.74 0.25 1.99 1.50 1.50 8.00 2.00 4.00 12.00 1.75 5.50
2220 5.10 5.97 2.80 0.25 3.05 1.50 1.50 8.00 2.00 4.00 12.00 1.75 5.50
3220 5.50 8.50 2.80 0.30 3.50 1.50 1.50 8.00 2.00 4.00 16.00 1.75 7.50
