Home /Products/Metal Oxide Varistor/UL Approved ZNR Transient Surge Absorbers Metal Oxide Varistor 05D471K 5mm 470V 300VAC 385VDC 800A 0.1W 21J

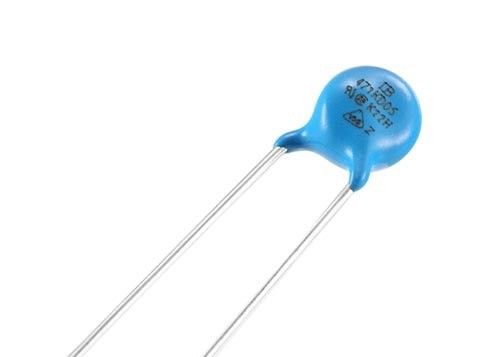

UL Approved ZNR Transient Surge Absorbers Metal Oxide Varistor 05D471K 5mm 470V 300VAC 385VDC 800A 0.1W 21J

10000 Pieces
MOQ
Negotiable
Price
UL Approved ZNR Transient Surge Absorbers Metal Oxide Varistor 05D471K 5mm 470V 300VAC 385VDC 800A 0.1W 21J
Features Gallery Product Description Request A Quote
Features
Specifications
Varistor Type: Metal Oxide Varistor
Diameter: 5mm
Varistor Voltage: 423-517 Volt
Vac: 300V
VDC: 385V
VC: 810V
Highlight:

zinc oxide varistor

,

varistor surge protection
Basic Infomation
Place of Origin: CHINA
Model Number: 05D471K
Payment & Shipping Terms
Packaging Details: Bulk/Tape
Delivery Time: 1-2 Weeks
Payment Terms: T/T
Supply Ability: 100,000,000 Pieces Per Month
Product Description



UL Approved ZNR Transient Surge Absorbers Metal Oxide Varistor 05D471K 5mm 470V 300VAC 385VDC 800A 0.1W 21J





Features



● Large withstanding surge current capability in compact sizes

● Large “Energy Handling Capability” absorbing transient overvoltages in compact sizes

● Wide range of varistor voltages

● RoHS compliant

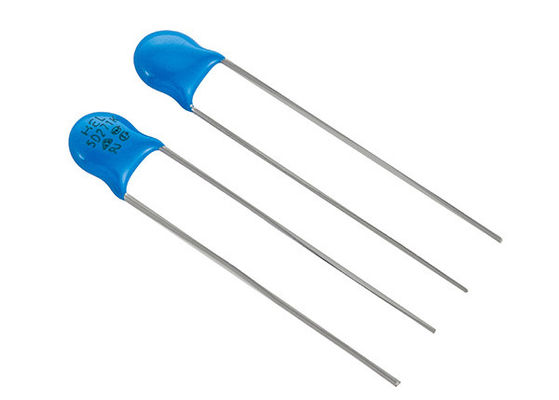

UL Approved ZNR Transient Surge Absorbers Metal Oxide Varistor 05D471K 5mm 470V 300VAC 385VDC 800A 0.1W 21J 0





Recommended Applications



● Transistor, diode, IC, thyristor or triac semiconductor protection

● Surge protection in consumer electronic equipment

● Surge protection in communication, measuring or controller electronics

● Surge protection in electronic home appliances, gas or petroleum appliances





Applicable Standards



● UL1449 (VZCA2/UL, VZCA8/C-UL)

● VDE IEC61051-1, -2, -2-2, IEC60950-1 Annex.Q

● CSA C22.2 No.1

● CQC(GB/T10193, GB/T10194, GB4943.1, GB8898) Refer to page 5 to 8, and 27, for the details





Dimension(mm)



UL Approved ZNR Transient Surge Absorbers Metal Oxide Varistor 05D471K 5mm 470V 300VAC 385VDC 800A 0.1W 21J 1

Dmax 7.5
Hmax 9.5
Lmin 25
A±1 5
±0.02 0.6





Thickness Tmax (mm)



180K--680K 5
820K--201K 5
221K--331K 5.5
361K--471K 6
511K--561K 6.5
621K--681K 7





Electrical Performances



Ø 05D Series Metal Oxide Varistor

Put “J” in free Code Stands For High Surge Series



Part Number

Vac

Vdc

V1mA

Ip

(A)

Vc(V)

I(A)

Standard

I(A)

High Surge

(J)

Standard

(J)

High Surge

Rated

power(W)

C@

1KHz(pf)

05D180K(J)

11

14

18(15-21.6)

1

40

100

250

0.4

0.6

0.01

1400

05D220K(J)

14

18

22(19.5-26)

1

48

100

250

0.5

0.7

0.01

1150

05D270K(J)

17

22

27(24-31)

1

60

100

250

0.6

0.9

0.01

930

05D330K(J)

20

26

33(29.5-36.5)

1

73

100

250

0.8

1.1

0.01

760

05D390K(J)

25

31

39(35-43)

1

80

100

250

0.9

1.2

0.01

640

05D470K(J)

30

38

47(42-52)

1

104

100

250

1.1

1.5

0.01

530

05D560K(J)

35

45

56(50-62)

1

123

100

250

1.3

1.8

0.01

450

05D680K(J)

40

56

68(61-75)

1

145

100

250

1.6

2.2

0.01

370

05D820K(J)

50

65

82(74-90)

5

150

400

800

2.5

4.0

0.1

300

05D101K(J)

60

85

100(90-110)

5

177

400

800

3.0

4.1

0.1

250

05D121K(J)

75

100

120(108-132)

5

210

400

800

4.0

4.9

0.1

210

05D151K(J)

95

125

150(135-165)

5

260

400

800

4.1

6.5

0.1

165

05D181K(J)

115

150

180(162-198)

5

320

400

800

4.9

7.5

0.1

140

05D201K(J)

130

170

200(180-220)

5

355

400

800

6.5

8.5

0.1

125

05D221K(J)

140

180

220(198-242)

5

380

400

800

7.5

9.0

0.1

110

05D241K(J)

150

200

240(216-264)

5

415

400

800

8.0

10.5

0.1

100

05D271K(J)

175

225

270(243-297)

5

475

400

800

8.5

11

0.1

95

05D301K(J)

190

250

300(270-330)

5

520

400

800

9.0

12

0.1

85

05D331K(J)

210

275

330(297-363)

5

570

400

800

9.5

13

0.1

75

05D361K(J)

230

300

360(324-396)

5

620

400

800

10

16

0.1

70

05D391K(J)

250

320

390(351-429)

5

675

400

800

12

17

0.1

65

05D431K(J)

275

350

430(387-473)

5

745

400

800

13

20

0.1

60

05D471K(J)

300

385

470(423-517)

5

810

400

800

15

21

0.1

55

05D511K(J)

320

415

510(459-561)

5

845

400

800

16

22.5

0.1

50

05D561K(J)

350

460

560(504-616)

5

920

400

800

16

24

0.1

45

05D621K(J)

385

505

620(558-682)

5

1025

400

800

21.0

25.0

0.1

40

05D681K(J)

420

560

680(612-748)

5

1120

400

800

21.0

29.0

0.1

35

05D751K(J)

460

615

750(675-825)

5

1240

400

800

22.4

32.0

0.1

30

Tag:

transient voltage suppressor

metal oxide varistor

zinc oxide varistor
