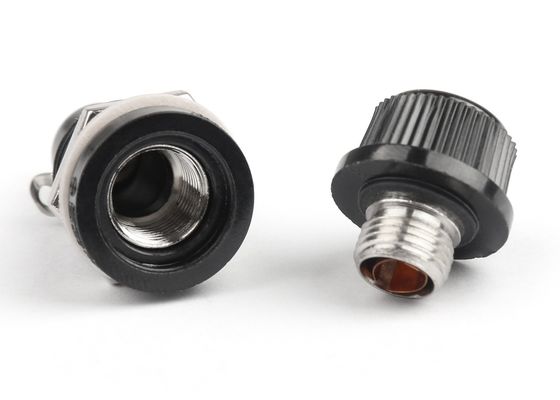

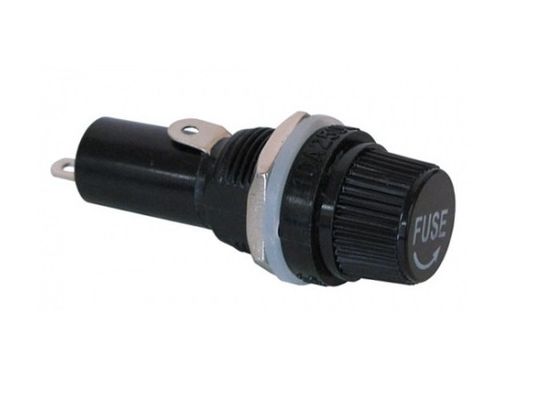

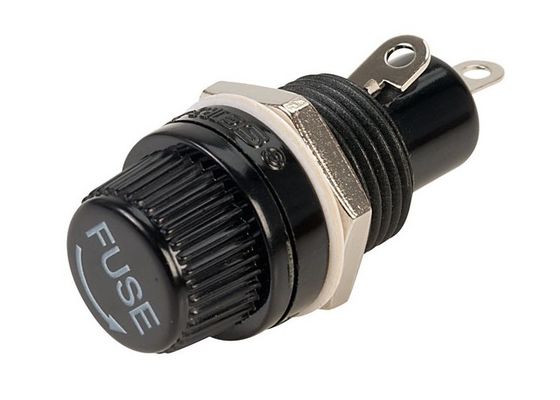

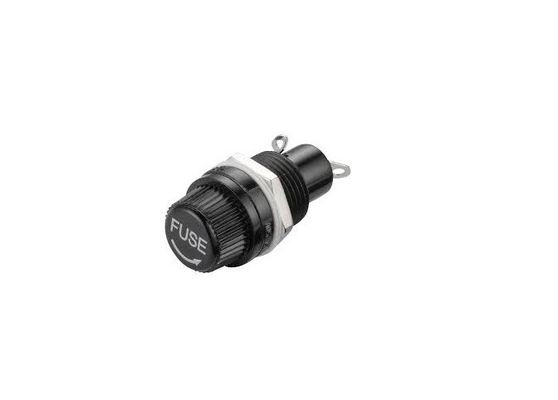

UL94 V0 Flammability Miniature Screw Type Cartridge PCB Fuse Holder Box Block For 5x20mm Ceramic Tube Fuses 10A 250V
Specification
Type: R3-12 Mounting Fuse Holder
Maximum Voltage: AC 250V
Maximum Rated Current: 10A
Suitable For Fuse Size: Used for 5mm x 20mm
Cap: Screw type
Dimension (mm)
Other Parameters
| Product Name |
PCB Fuse Holder |
| P/N |
R3-12 |
| Voltage breakdown |
AC2500 1minute |
| Insulation resistance |
DC 500V 100MΩ |
| Rating Values |
10A 250VAC |
| Temperature range |
-20℃ -150 ℃ |
| Flammability class |
UL94V0 |
| Standard |
IEC-60335-1 GB_9364.6-2001 |
| Certification |
ISO9001, ROHS, |
| Mounting |
PCB Mount |
| Material |
Thermosetting glue, Brass |
| International Approvals |
CE, CQC, UL,VDE |
| Fuse size |
5*20mm Glass Fuse |
| Application |
It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment. |
PCB Mount Fuse Holder
PCB mounts, or fuse holders, provide the installation hardware for a fuse. They are used in circuits to contain, protect and mount fuses. They are usually designed so that the wrong fuse cannot be placed in the mount, with a tab preventing accidental misuse.
Types of PCB mounts
PCB mounts come in two basic types, open or fully enclosed. Open PCB mounts include fuse clips, fuse blocks, socket and plug-on cap varieties. The fully enclosed variety may use a fuse carrier that is inserted into a holder or may use other means to fully enclose the fuse.
Both open and enclosed PCB mounts are available with a range of terminal styles including quick disconnect, solder and angled versions.
Why are PCB mounts important ?
Fuses need to be protected because they themselves protect circuits from over current conditions. For example, if a circuit receives too high a level of current, the fuse will burn out, breaking the circuit. With a PCB mount, your fuse is protected and you can easily change it if required.
Technical data
| Category |
Fuse holder |
| Nominal voltage |
250 V AC |
| Nominal current |
10 A |
| Connection |
Soldering |
| Mounting type |
Recess-mount |
| Suitable for |
Micro fuse 5 x 20 mm |
| Number of fuses |
1 |
| Length |
36.6 mm |
| (Ø) |
15 mm |
| Content |
1 pc(s) |
| Type |
R3-12 |
| RoHS-compliant |
Yes |
Fuse Holders, Fuse Blocks & Accessories
Fuse holders, fuse blocks and accessories by Aolittel provide fusing solutions for industrial systems and component protection. Available for all fuse series sold by Aolittel, most fuse holders and blocks are offered in single, fixed-multiple, or modular styles to satisfy industrial current protection applications.
Other part available : R3-11,R3-12,R3-13,R3-41.R3-44.R3-55,R3-9,R3-22,R3-32,R3-46,R3-48,R3-54,R3-53,R3-17,R3-13E,R3-14A,R3-14D,R3-18,R3-21A,R3-21C,R3-22A,R3-63,PTF-45,MF560,MF563,ANL,ATM,ATC,ATO,APS,ATT,ATS,MINI,BLX-A,PTF-76,MF551,BANL-B6,BANL-B2,BANL-B,ANM-E,ANM-B2,ANM-B4,ANM-B,NS-A,AB19,AB29,MT250,SL-703C,OP 520,R5-20,PTF-15,etc.
