Home /Products/Pico Fuse/4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC

4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC

2000 Pieces
MOQ
Negotiable
Price
4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Miniature Pico Fuse
Voltage: 350VAC
Current Value: 3A
Speed: Fast Blow F
Package: Tape
Interrupting Rating: 50A@350VAC
Highlight:

littelfuse pico fuse

,

low profile mini fuse
Basic Infomation
Place of Origin: Dongguan,China
Brand Name: AOLITTEL
Certification: UL,cUL
Model Number: RFP1300
Payment & Shipping Terms
Packaging Details: Tape,2000pcs/box,20000pcs/outer carton
Delivery Time: 10 Days
Payment Terms: T/T, Western Union
Supply Ability: 20,000,000 Pieces Per Month
Product Description



4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC





Applications



Secondary protection for space constrained applications

• Flat–panel Display TV
• LCD monitor
• LCD backlight inverter
• Office machines
• Power supply
• Audio/Video system
• Lighting system
• Medical equipment

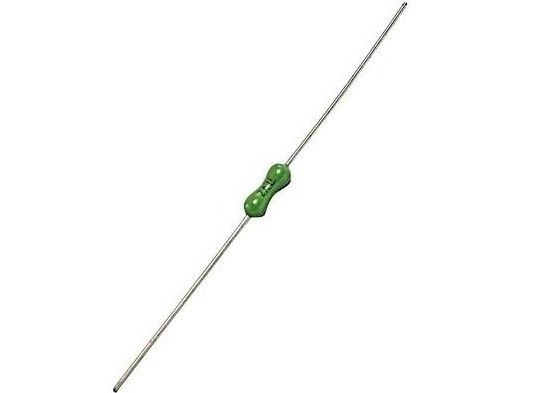

4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC 0


Features

Fully compatible with Lead–free solder alloys and higher temperature profiles associated with Lead–free assembly
UL,cUL certified Axial Lead Fuse
Available from 100mA till 15A
350V high voltage version
Wire in air design
High temperature epoxy plastic body, UL 94V0
Matte tin-plated copper lead wires


Specifications


Part

No.

Ampere

Rating

Voltage

Rating

Breaking

Capacity

Agency Approvals
UL CUL

PSE

JET
RFP0100 100mA 350V 50A@350VAC ● ● ○
RFP0125 125mA 350V 50A@350VAC ● ● ○
RFP0160 160mA 350V 50A@350VAC ● ● ○
RFP0200 200mA 350V 50A@350VAC ● ● ○
RFP0250 250mA 350V 50A@350VAC ● ● ○
RFP0300 300mA 350V 50A@350VAC ● ● ○
RFP0315 315mA 350V 50A@350VAC ● ● ○
RFP0350 350mA 350V 50A@350VAC ● ● ○
RFP0375 375mA 350V 50A@350VAC ● ● ○
RFP0400 400mA 350V 50A@350VAC ● ● ○
RFP0500 500mA 350V 50A@350VAC ● ● ○
RFP0600 600mA 350V 50A@350VAC ● ● ○
RFP0630 630mA 350V 50A@350VAC ● ● ○
RFP0700 700mA 350V 50A@350VAC ● ● ○
RFP0750 750mA 350V 50A@350VAC ● ● ○
RFP0800 800mA 350V 50A@350VAC ● ● ○
RFP1100 1A 350V 50A@350VAC ● ● ○
RFP1125 1.25A 350V 50A@350VAC ● ● ○
RFP1150 1.5A 350V 50A@350VAC ● ● ○
RFP1160 1.6A 350V 50A@350VAC ● ● ○
RFP1200 2A 350V 50A@350VAC ● ● ○
RFP1250 2.5A 350V 50A@350VAC ● ● ○
RFP1300 3A 350V 50A@350VAC ● ● ○
RFP1315 3.15A 350V 50A@350VAC ● ● ○
RFP1350 3.5A 350V 50A@350VAC ● ● ○
RFP1400 4A 350V 50A@350VAC ● ● ○
RFP1500 5A 350V 50A@350VAC ● ● ○
RFP1600 6A 350V 50A@350VAC ● ● ○
RFP1630 6.3A 350V 50A@350VAC ● ● ○
RFP1700 7A 350V 50A@350VAC ● ● ○
RFP1800 8A 350V 50A@350VAC ● ● ○
RFP1900 9A 350V 50A@350VAC ● ● ○
RFP2100 10A 350V 50A@350VAC ● ● ○
RFP2120 12A 350V 50A@350VAC ○ ○ ○
RFP2150 15A 350V 50A@350VAC ○ ○ ○


Electrical Characteristics


% of Ampere Rating(In)

Blowing Time
100% * In 4 hours Min
200% * In 60 sec Max



Dimension (mm)



Single product Tape size

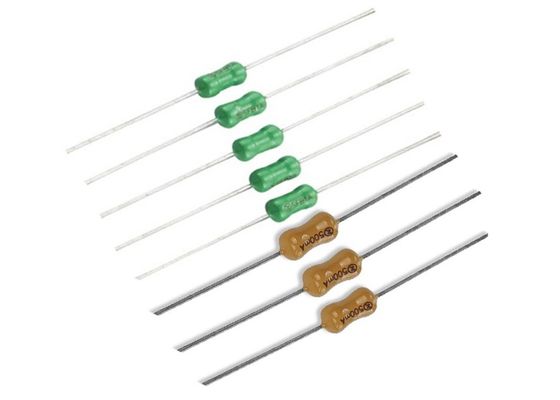

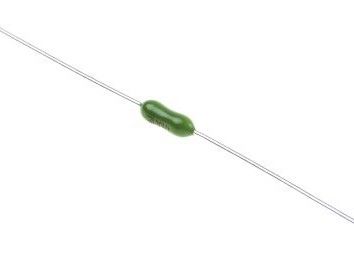

4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC 1 4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC 2



NO.

Part Name

Material
1

Body Encapsulated

Epoxy Coated
2

Lead wire

Tin Plated Copper
3

Cap

Nickel Plated Brass
4

Fuse element

Alloy wire
5

Body

Non-Transparent Ceramic Tube


What is a Pico Fuse ?

A Pico fuse is an axial leaded subminiature fuse, that is offered in both fast acting, and time lag, versions. Fuse Pico voltage, ratings typically range from 32 volts to 250 volts AC with the most common fuses rated at 125 volts AC, we have developed 350V high voltage version. Radial leads are offered in some Pico fuse series by bending the axial leads in the downward position. A Pico fuse typically carries a UL Recognition, and CSA Approval,. Fuse Pico MIL Spec, versions are also available.


Environmental Data

Shock resistance: MIL-STD-202, Method 213B, Test Condition I (Sawtooth)
• Vibration resistance: MIL-STD-202, Method 201 (10-55Hz x 3 axis/ no load)
• Moisture resistance: MIL-STD-202F, Method 106
• Soldering heat resistance: MIL-STD-202, Method 210 Top side (260ºC, 20 sec)
• Salt spray: MIL-STD-202, Method 101, Test Condition B (48 Hours)
• Solderability MIL-STD-202, Method 208H
• Operating Temperating: -55ºC to 125ºC


Time-Current Curve

4x12mm Axial Leaded Fast Acting Miniature Pico Fuse 350V 3Amp With UL cUL Approved Breaking Capacity 50A 350VAC 3
