PCB Mount Miniature Axial Lead Cartridge Fuses Fast Acting Pico Fuse 2.4x7 3x7 2x7 125V 250V 2Amp For Lighting System
Description
Fast-acting fuses open on overload and they short-circuit very quickly. Uses include supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. Quick-acting fuses are not designed to withstand temporary overload currents which are associated with some electrical loads.
Features
- Reduced PCB space requirements
- Internationally approved
- Low Internal Resistance
- Vibration Resistant
- Very fast-acting
- Small size
- Wide range of current rating
- Wide operating temperature range
- Low temperature de-rating
Specifications
| Rated Current |
2.0A |
| Voltage Rating |
250VAC |
| Breaking Capacity |
50A@125V/250VAC,50-60Hz |
| Voltage Drop |
(1.0 x 1): 230mV max. |
| Power Dissipation |
(1.0 x 1): 550mW max. |
| Current Rage |
100mA ~ 6.3A |
| DC Cold Resistance |
0.0145 Ohms ~ 5.5 Ohms |
| Fuse Type |
Board Mount (Cartridge Style Excluded) |
| Voltage Rating |
AC:250V |
| Response Time |
Fast |
| Size / Dimension |
0.155" Dia x 0.280" L (3.94mm x 7.11mm) |
| Package / Case |
Axial |
| Operating Temperature |
-55°C ~ 125°C |
| Mounting Type |
Through Hole |
| Melting I²t |
0.000192 ~ 5.55 |
Product & Tape Dimension Unit:mm
Series Performances
|
Part
No.
|
Ampere
Rating
|
Voltage
Rating
|
Breaking
Capacity
|
I2TMelting
Integral(A2.S)
|
Agency Approvals
|
| UL |
cUL |
PSE
|
| SFB0100A/B |
100mA |
250V/125V |
50A@125V/250VAC |
0.001 |
● |
● |
○ |
| SFB0125A/B |
125mA |
250V/125V |
50A@125V/250VAC |
0.002 |
● |
● |
○ |
| SFB0160A/B |
160mA |
250V/125V |
50A@125V/250VAC |
0.003 |
● |
● |
○ |
| SFB0200A/B |
200mA |
250V/125V |
50A@125V/250VAC |
0.006 |
● |
● |
○ |
| SFB0250A/B |
250mA |
250V/125V |
50A@125V/250VAC |
0.012 |
● |
● |
○ |
| SFB0300A/B |
300mA |
250V/125V |
50A@125V/250VAC |
0.016 |
● |
● |
○ |
| SFB0315A/B |
315mA |
250V/125V |
50A@125V/250VAC |
0.019 |
● |
● |
○ |
| SFB0350A/B |
350mA |
250V/125V |
50A@125V/250VAC |
0.022 |
● |
● |
○ |
| SFB0400A/B |
400mA |
250V/125V |
50A@125V/250VAC |
0.035 |
● |
● |
○ |
| SFB0500A/B |
500mA |
250V/125V |
50A@125V/250VAC |
0.047 |
● |
● |
○ |
| SFB0630A/B |
630mA |
250V/125V |
50A@125V/250VAC |
0.056 |
● |
● |
○ |
| SFB0750A/B |
750mA |
250V/125V |
50A@125V/250VAC |
0.078 |
● |
● |
○ |
| SFB0800A/B |
800mA |
250V/125V |
50A@125V/250VAC |
0.098 |
● |
● |
○ |
| SFB1100A/B |
1A |
250V/125V |
50A@125V/250VAC |
0.3 |
● |
● |
○ |
| SFB1125A/B |
1.25A |
250V/125V |
50A@125V/250VAC |
0.5 |
● |
● |
○ |
| SFB1150A/B |
1.5A |
250V/125V |
50A@125V/250VAC |
0.6 |
● |
● |
○ |
| SFB1160A/B |
1.6A |
250V/125V |
50A@125V/250VAC |
0.8 |
● |
● |
○ |
| SFB1200A/B |
2A |
250V/125V |
50A@125V/250VAC |
1.2 |
● |
● |
○ |
| SFB1250A/B |
2.5A |
250V/125V |
50A@125V/250VAC |
2 |
● |
● |
○ |
| SFB1300A/B |
3A |
250V/125V |
50A@125V/250VAC |
2.5 |
● |
● |
○ |
| SFB1315A/B |
3.15A |
250V/125V |
50A@125V/250VAC |
2.9 |
● |
● |
○ |
| SFB1350A/B |
3.5A |
250V/125V |
50A@125V/250VAC |
3.1 |
● |
● |
○ |
| SFB1400A/B |
4A |
250V/125V |
50A@125V/250VAC |
4.2 |
● |
● |
○ |
| SFB1500A/B |
5A |
250V/125V |
50A@125V/250VAC |
7.2 |
● |
● |
○ |
| SFB1630A/B |
6.3A |
250V/125V |
50A@125V/250VAC |
12 |
● |
● |
○ |
Operating Characteristics
|
% of Ampere Rating(In)
|
Blowing Time
|
| 100% * In |
4 hours Min |
| 200% * In |
60 sec Max |
Application
Lighting system
Power supply
LCD/PDP TV
LCD monitor
Office automation machines
Audio/Video system
Medical equipment
Packing Quantity
A. Bulk packing:
Bulk 500 pcs in per poly bag;
10 poly bags in per inner box;
4 inner boxes in per outer carton

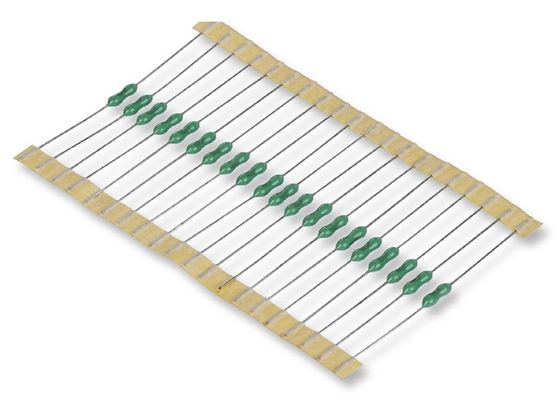

B. Taped packing:(Default package)
3000 pcs per inner box
10 inner boxes per outer carton
Environmental Data
• Life Test: 2000 hours at 80% rated current, 55°C
• Moisture Resistance: MIL-STD-202, Method 106, 90% relative humidity at 65°C.
• Operating Temperature: -55°C to 125°C with proper fuse derating
• Resistance to Soldering Heat: MIL-STD-202, Method 210, Test Condition C (260°C)
• Salt Spray: MIL-STD-202, Method 101, Test Condition B
• Shock: MIL-STD-202, Method 213, Test Condition I, 100G’s for 6 milliseconds
• Terminal Strength: MIL-STD-202, Method 211, Test Condition A, will withstand 7 lb. axial pull test.
• Thermal Shock: MIL-STD-202, Method 107, Test Condition B, -65°C to 125°C
• Thermal Cycle: EIA-STD-RS-186-C, Test Condition A, -55°C to 85°C
• Vibration: MIL-STD-202, Method 204, Test Condition C, (55 to 2000 HZ, 10G’s peak)
• Wave Soldering: Maximum reservoir temperature 260°C, 10 second maximum exposure, .125" from body
• Solderability: MIL-STD-202, Method 208

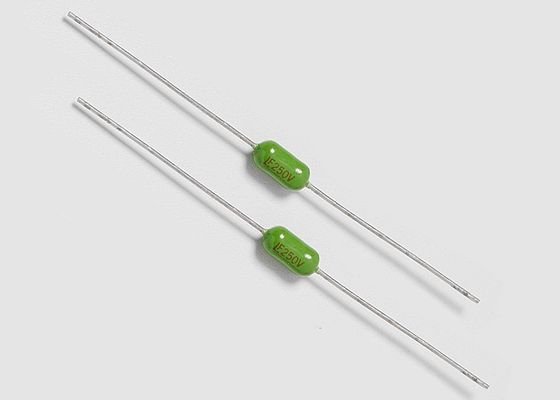

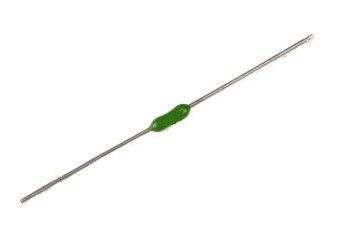

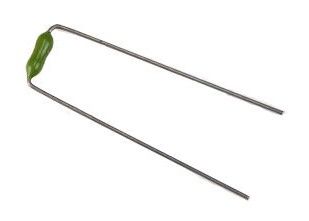

Product Photos
