Name: AEC-Q200 Thermally Conductive Epoxy Sealed Bead NTC Thermistor 30KOhm 3950 With UL4411 24AWG 2C 125C 300V Cable
Brand: Aolittel
SKU: CWFD0303KC-331X
Rating: 4.7 (125 reviews)

AEC-Q200 Thermally Conductive Epoxy Sealed Bead NTC Thermistor 30KOhm 3950 With UL4411 24AWG 2C 125C 300V Cable

1000 Pieces

MOQ

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Type: NTC Thermistor

Resistance: 30KOhm

B Parameter: 3950K

Power Rating: 100mW

Termination Style: Radial

Cable: UL4411# 24AWG

Diameter: 4.5mm Max

Length: 15mm Max.

Highlight:

ntc thermistor high temperature

ntc thermistor sensor

Basic Infomation

Brand Name: Aolittel

Model Number: CWFD0303KC-331X

Payment & Shipping Terms

Packaging Details: Bulk

Delivery Time: 2-4 Weeks

Payment Terms: T/T

Supply Ability: 500,000 Pieces Per Month

Gallery

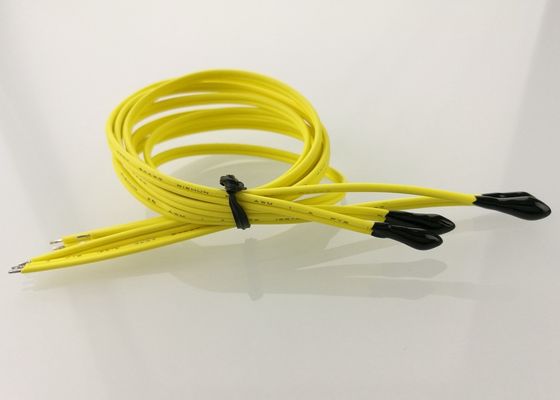

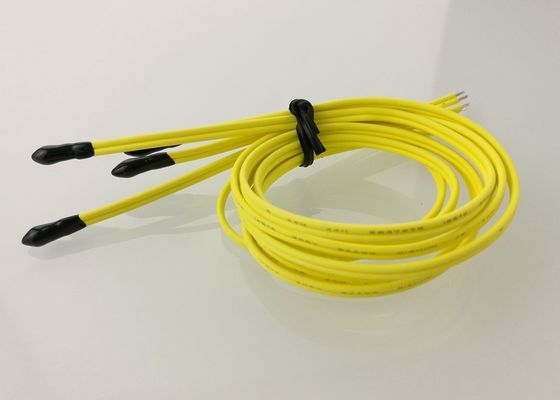

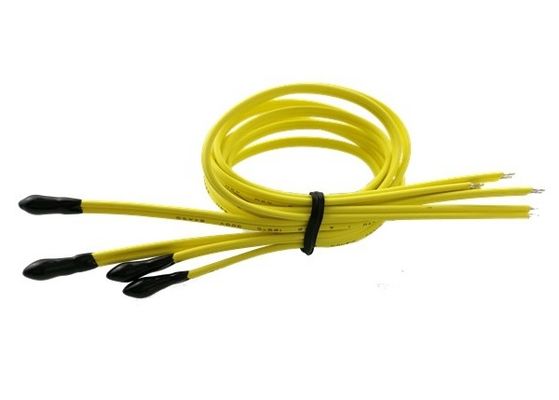

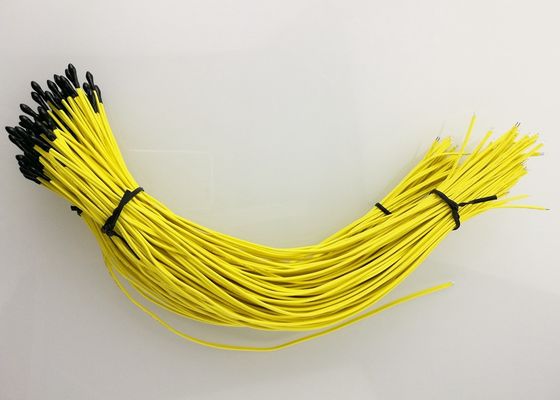

AEC-Q200 Thermally Conductive Epoxy Sealed Bead NTC Thermistor 30KOhm 3950 With UL4411 24AWG 2C 125C 300V Cable

Product Description

AEC-Q200 Thermally Conductive Epoxy Sealed Bead NTC Thermistor 30KOhm 3950 With UL4411 24AWG 2C 125C 300V Cable

Overview

The BetaCURVE Chip NTC Thermistor is Soldered to 24 AWG Solid Silver Plated Copper Leads with Insulation. Device is Encapsulated in Stycast Epoxy Resin

__________________________________________________________________________ Download________

APPLICATIONS

Temperature sensing, control and compensation.

E.g. inlet air temperature sensing thermistors or ECT in automotive applications, sensor elements in industrial and commercial applications, heating systems and industrial systems.

FEATURES

Advanced NTC technology

Temperature range from -20 °C to +125 °C

Highly resistant to thermal shocks

Small body diameter of max. 4.5 mm

AEC-Q200

Fast response time

Thermally Conductive Epoxy Coating

High sensitivity

Size (mm)

AEC-Q200 Thermally Conductive Epoxy Sealed Bead NTC Thermistor 30KOhm 3950 With UL4411 24AWG 2C 125C 300V Cable 1

Material

NO	Material Name	Item/PN
2-1.	Element	R25=30KΩ±10% B25/50=3950±1%
2-2.	Coating	Epoxy Resin (Black)
2-3.	Lead Wire	UL4411# 24AWG×2C 70.20mm 125℃ 300V (Yellow) Diameter:1.4±0.05 2.9±0.1mm Meet SAEJ-1128

Performances

NO	Item	Sign	Test Conditions	Min.	Normal value	Max.	Unit
4-1.	Resistance at 25℃	R25	Ta=25±0.05℃ P_T≦0.1mw	27.0	30.0	33.0	kΩ
4-2.	B Value	B25/50		3910.5	3950	3989.5	k
4-3.	Dissipation factor	σ	Ta=25±0.5℃ In still air	≧2			mw/℃
4-4.	Time constant	τ	Ta=25±0.5℃ In still air	≦7			sec
4-5.	Operating temp.range	/	/	-20	/	+125	℃
4-6	Insulation resistance	/	100V DC	100	/	/	MΩ
4-7.	Withstand voltage test	/	200V AC	5	/	/	Sec

Reliability

NO	Item	Technical requirements	Test conditions and method
5-1.	High temp. Test	DR/R25£±3% DB/B£±3% No change with withstand voltage, Insalution performance. Appearance without damage.	100±5℃,power on 500±24 hrs,DC0.2mA
5-2.	Low temp. tes		-20±5℃,power on 500±24 hrs,DC0.2mA
5-3.	Endure moisture test		Store in environment 55±2℃,90%-95%RH for 500±24 hrs
5-4.	Temp. cycle test		–20℃×30min→Room temp.×10min→ in 100℃ water×30min→Room temp.×10min 10 cycles
5-5	Load electrify test		Power on DC1mA, 500hrs in room temp. and humid.
5-6	Drop test		Free fall into concrete floor from height 1M ,10 cycle.
5-7	Vibration test		Frequency range:10～55HZ Total amplitude 1.52mm 1 cycle 1 min ,direction and time X,Y,Z axs 2Hr each.
5-8	Bending test		Bend 180°binding site wire and epoxy resin.Back and forth 10 times
5-9	Tensile tests		Put 2 kg of force lasts 1 min

AEC-Q200 Thermally Conductive Epoxy Sealed Bead NTC Thermistor 30KOhm 3950 With UL4411 24AWG 2C 125C 300V Cable 2
