Name: NXP Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor
Brand: Ao littel
SKU: LPT-KTY83-110F
Price: 0.6 USD
Availability: InStock
Rating: 4.6 (154 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Category: PTC Thermistor 1KOhm

Packaging: Bulk (Default) / Tape

Thermal Time Constant: 0.5 (Flowing Liquid) S, 1 (Still Liquid) S, 20 (Air) S

Resistance @ 25 °C: 1 KΩ

Application: Control, Measurement

Maximum Operating Temperature: +150°C

Minimum Operating Temperature: -55°C

Mounting Type: Through Hole

Package / Case: DO-204AG, DO-34, Axial

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Lead Free Status / RoHS Status: Lead Free / RoHS Compliant

Temperature Coefficient α25: 0.76 % / K

Dissipation Factor: 1.5mW/C

Insulation Resistance: 100 MOhm (100VDC)

Maximum Operating Current: 8mA

Rated Operating Current: 2mA

Rated Power: 50mW

Unit Weight: 0.1g

High Light:

positive temperature coefficient thermistor

ptc thermistor sensor

Basic Infomation

Place of Origin: CHINA

Brand Name: Ao littel

Model Number: LPT-KTY83-110F

Payment & Shipping Terms

Packaging Details: Bulk,500pcs/bag Tape,5000pcs/box

Delivery Time: 10 Workdays

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 1,000,000 Piece/Month

Gallery

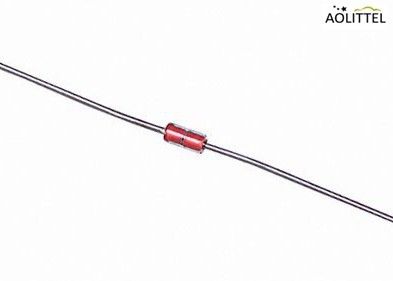

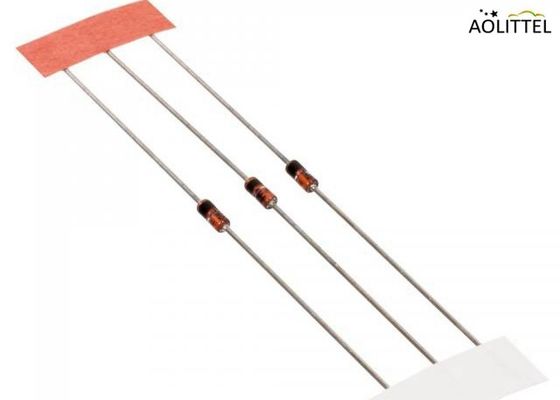

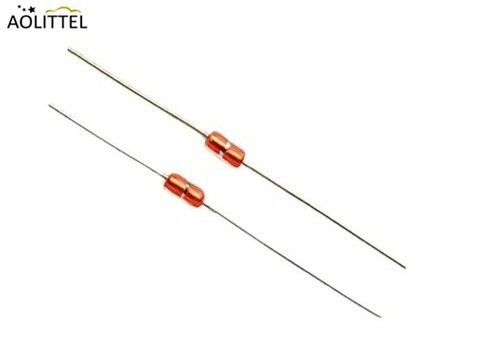

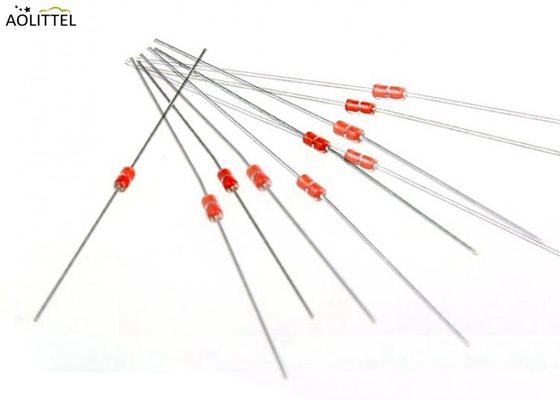

NXP Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor

Product Description

NXP Semiconductors KTY83/110 Replacement SOD-68 Limit Axial PTC Thermistor 1KOhm For Temperature Sensor

General

Ao littel PTC Thermistor LPT-KTY83-110F are perfect to be applied as temperature sensing devices in measurement / control systems. Also non-linear, they performed highly repeatable, predictable and stable resistance versus temperature characteristics. Ao littel PTC Thermistor LPT-KTY83-110F have a wide operating range and long operating life and are available in various package styles and initial tolerances.

______________________________________________________________________________ Download________

Fail-safe positive temperature coefficient
Semi-logarithmic R/T characteristic
Close resistance tolerance (KTY81/110 = ±1%)

Ao littel PTC Thermistor LPT-KTY83-110F have a positive temperature coefficient of
resistance and are suitable for use in measurement and control systems. Ao littel PTC Thermistor LPT-KTY83-110F are encapsulated in the SOD68 (DO-34) package.
Other special selections are available on request

Features

Excellent precision and reliability

Long-term stability

Non-linear characteristics

Tape and bulk

Dimension in mm

NO	COMPONENT	MATERIAL AND SPECIFICATIONS	Q'TY
2-1.	Tinned Dumet Wire	Copper-Clad Ni-Fe 0.5mm	2
2-2.	Element	Chip (Silicon)	1
2-3.	Housing	OD Ф2.0mm_max_,ID Ф0.8±0.05mm	1

Specification

NO	Item	Sign	Test Conditions	Min.	Normal value	Max.	Unit
3-1.	Resistance at 25℃	R25	Ta=25±0.05℃	990	1000	1010	Ω
3-2.	Resistance at 100℃	R100	Ta=100±0.05℃	/	/	/	Ω
3-3.	Dissipation factor	σ	Ta=25±0.5℃ (In still air)	1.5	/	/	mw/℃
3-4.	Time constant	τ	Ta=25±0.5℃ (In still air)	/	/	17	sec
3-5.	Insulation resistance	/	100V DC	100	/	/	MΩ
3-6.	Maximum operating current	I_max	/	/	/	8	mA
3-7.	Rated operating current	I_N	/	/	2	/	mA
3-8.	Rated Power	P_max	/	/	/	50	mW
3-9.	Operating temp.range	T_A	/	-55	/	+150	℃

R/T Characteristics

Centigrade (℃)	Fahrenheit (℉)	T/℃ %/(K)	LPT-KTY83-110F			DR (K)
			Resistance(Ω)
			Min.	Center	Max.
-55	-67	0.99	475	490	505	±3.02
-50	-58	0.98	500	515	530	±2.92
-40	-40	0.96	552	567	582	±2.74
-30	-22	0.93	609	624	638	±2.55
-20	-4	0.91	669	684	698	±2.35
-10	14	0.88	733	747	761	±2.14
0	32	0.85	802	815	828	±1.91
10	50	0.83	874	886	898	±1.67
20	68	0.80	950	961	972	±1.41
25	77	0.79	990	1000	1010	±1.27
30	86	0.78	1029	1040	1051	±1.39
40	104	0.75	1108	1122	1136	±1.64
50	122	0.73	1192	1209	1225	±1.91
60	140	0.71	1278	1299	1319	±2.19
70	158	0.69	1369	1392	1416	±2.49
80	176	0.67	1462	1490	1518	±2.8
90	194	0.65	1559	1591	1623	±3.12
100	212	0.63	1659	1696	1733	±3.46
110	230	0.61	1762	1805	1847	±3.83
120	248	0.58	1867	1915	1963	±4.33
125	257	0.55	1919	1970	2020	±4.66
130	266	0.52	1970	2023	2077	±5.07
140	284	0.45	2065	2124	2184	±6.28
150	302	0.35	2145	2211	2277	±8.55

Packaging Data

B (Bulk)

Quantity of each polybag (pcs)

TA(Taping)

Quantity of each inter-box (pcs)

500

5000

Storage Conditions

1 Storage Temperature: -10℃ ～ +40℃

2 Relative Humidity: ≦75% RH

3 Keep products away from corrosive such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderabilit.

4 The products can be used in two years under storage condition
