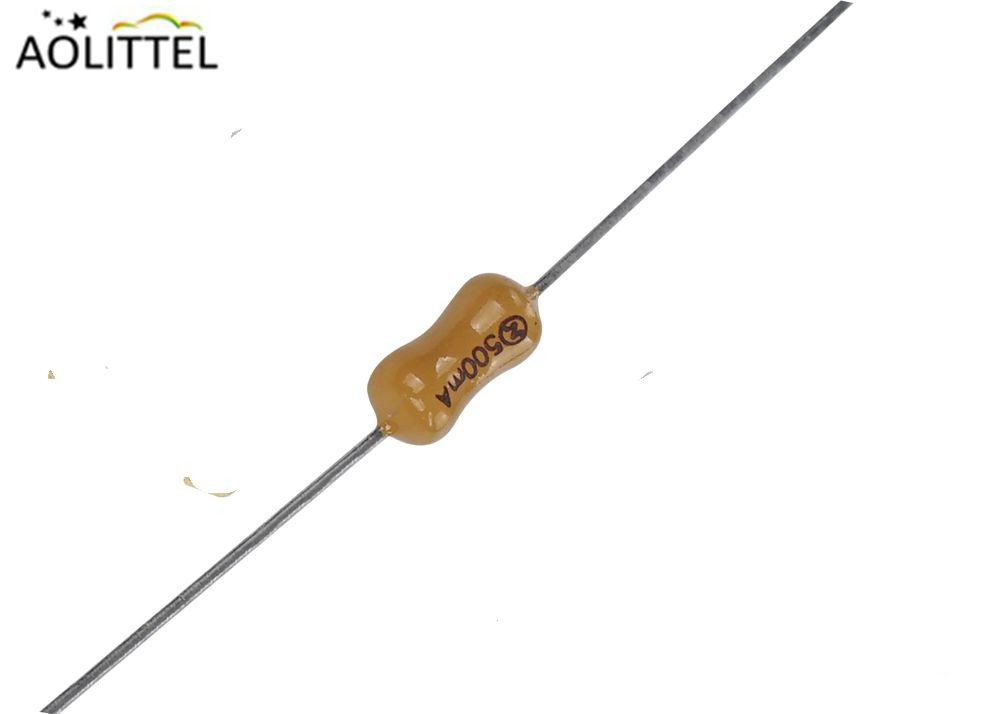

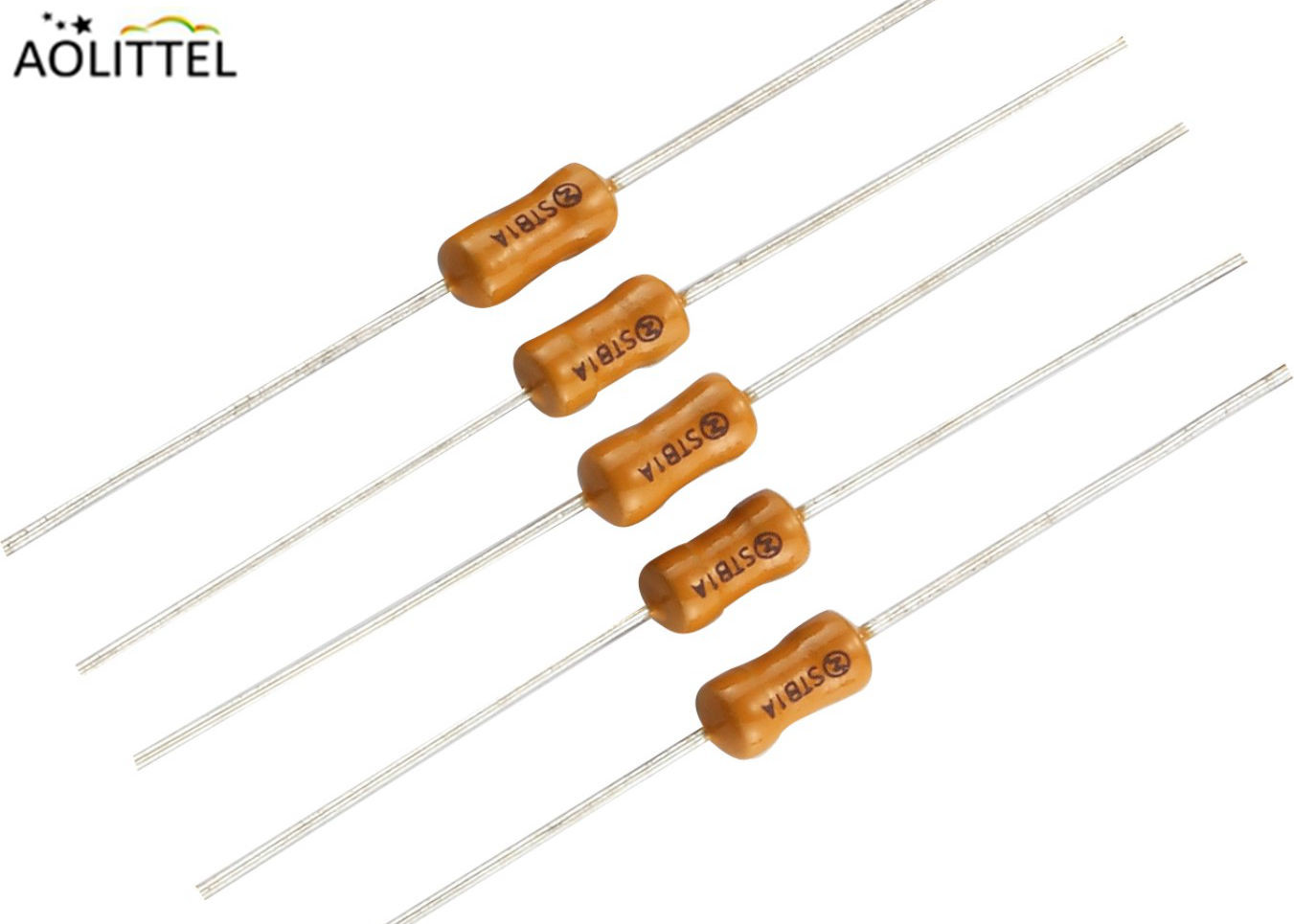

Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm

1000PCS
MOQ
USD .04 to 0.06 Per Piece
Price
Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: Subminiature Axial Leaded Slow Blow Pico Fuse
Unit Weight: 4 Gram
Series: STB
Color: Yellow
Rated Voltage: 125V/250V
Rated Current: 100mA-10A
Lead Style: Axial
Recommended Hand-Solder Parameters: Solder Iron Temperature: 350°C +/- 5°C Heating Time: 5 Seconds Max.
Materials: Encapsulated, Epoxy-Coated Body; Solder Coated Copper Wire Leads; RoHS Compliant Product: Pure Tin-coated Copper Wire Leads
Solderability: MIL-STD-202, Method 208
Lead Pull Force: MIL-STD-202, Method 211, Test Condition A (will Withstand 7 Lbs. Axial Pull Test)
Operating Temperature: 55º C To +125ºC (Consider Re-rating)
Shock: MIL-STD-202, Method 213, Test Condition I (100 G’s Peak For 6 Milliseconds)
Agency Approvals: UL,CUL,ROHS
High Light:

littelfuse pico fuse

,

inline mini fuse
Basic Infomation
Place of Origin: CHINA
Brand Name: Ao littel
Certification: UL,CUL,ROHS
Model Number: STB
Payment & Shipping Terms
Packaging Details: Bulk/Tape(Default package)
Delivery Time: 7 Workdays
Payment Terms: T/T, MoneyGram, Western Union,Paypal,Cash
Supply Ability: 1,000,000 Pieces Per Week
Product Description



Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm



Overview


Ao littel pico fuse , axial leaded thru-hole slow blow subminiature fuse , high temperature epoxy encapsulation, low resistance values ,offer in both fast acting and slow blow version. Rated voltage typically range at 125 volts AC , 250 volts AC and 350 volts AC .Radial leads are customzied in some series by bending the axial leads in the downward position. Ao littel pico fuse typically recognized UL and CUL approvals,.
Herewith simply conclusion:
______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________
Ao littel Pico Fuse Family Member
No. Size Blow Voltage Series
1 3*8mm Slow Blow 125V/250V STB
2 3*8mm Fast-acting 125V/250V SFB
3 4*11mm Slow Blow 350V RTP
4 4*11mm Fast-acting 350V RFP



Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm 1





Agency Approvals



Voltage Rating

Agency

Ampere Range

Agency File Number
125V/250V UL 100mA ~ 6.3A E340427(JDYX2)
C-UL 100mA ~ 6.3A E340427(JDYX8)







Body size and tape dimension (mm)



Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm 2
                   Subminiature Axial Leaded Slow Blow Pico Fuse STB 125V 250V 3x8mm 3





Electrical Specification



Specification ,A=250V / B=125V,● Approved / ○ Pending
P/N Ampere Rating Voltage Rating Breaking Capacity I2TMelting Integral(A2.S) Agency Approvals
UL CUL PSE
STB0100A/B 100mA 250V/125V 50A@125V/250VAC 0.01 ● ● ○
STB0125A/B 125mA 250V/125V 50A@125V/250VAC 0.02 ● ● ○
STB0160A/B 160mA 250V/125V 50A@125V/250VAC 0.04 ● ● ○
STB0200A/B 200mA 250V/125V 50A@125V/250VAC 0.06 ● ● ○
STB0250A/B 250mA 250V/125V 50A@125V/250VAC 0.09 ● ● ○
STB0300A/B 300mA 250V/125V 50A@125V/250VAC 0.12 ● ● ○
STB0315A/B 315mA 250V/125V 50A@125V/250VAC 0.15 ● ● ○
STB0375A/B 375mA 250V/125V 50A@125V/250VAC 0.19 ● ● ○
STB0400A/B 400mA 250V/125V 50A@125V/250VAC 0.31 ● ● ○
STB0500A/B 500mA 250V/125V 50A@125V/250VAC 0.46 ● ● ○
STB0630A/B 630mA 250V/125V 50A@125V/250VAC 0.78 ● ● ○
STB0750A/B 750mA 250V/125V 50A@125V/250VAC 0.93 ● ● ○
STB0800A/B 800mA 250V/125V 50A@125V/250VAC 1.1 ● ● ○
STB1100A/B 1A 250V/125V 50A@125V/250VAC 1.3 ● ● ○
STB1125A/B 1.25A 250V/125V 50A@125V/250VAC 2.6 ● ● ○
STB1150A/B 1.5A 250V/125V 50A@125V/250VAC 3.1 ● ● ○
STB1160A/B 1.6A 250V/125V 50A@125V/250VAC 3.9 ● ● ○
STB1200A/B 2A 250V/125V 50A@125V/250VAC 7.2 ● ● ○
STB1250A/B 2.5A 250V/125V 50A@125V/250VAC 12 ● ● ○
STB1300A/B 3A 250V/125V 50A@125V/250VAC 15 ● ● ○
STB1315A/B 3.15A 250V/125V 50A@125V/250VAC 19 ● ● ○
STB1350A/B 3.5A 250V/125V 50A@125V/250VAC 24 ● ● ○
STB1400A/B 4A 250V/125V 50A@125V/250VAC 29 ● ● ○
STB1500A/B 5A 250V/125V 50A@125V/250VAC 59 ● ● ○
STB1630A/B 6.3A 250V/125V 50A@125V/250VAC 90 ● ● ○





Fuse melting ref. standard



% of Ampere Rating(In)

Blowing Time
100% * In 4 hours Min
200% * In

60 sec Max





Main Features



• Improve inrush withstand
• Subminiature size
• Wide current range (0.1A - 10A)
• Low temperature rerating

• Supply from factory directly to make cost-down easily

• Strong technical support with RD with more than 10 years' fuse industry experience





Environmental Data



Shock resistance: MIL-STD-202, Method 213B, Test Condition I (Sawtooth)
Vibration resistance:  MIL-STD-202, Method 201 (10-55Hz x 3 axis/ no load)
Moisture resistance: MIL-STD-202F, Method 106
Soldering heat resistance: MIL-STD-202, Method 210 Top side (260ºC, 20 sec)
Salt spray: MIL-STD-202, Method 101, Test Condition B (48 Hours)
Solderability MIL-STD-202, Method 208H
Operating Temperating: -55ºC to 125ºC





Packaging



Package type Description

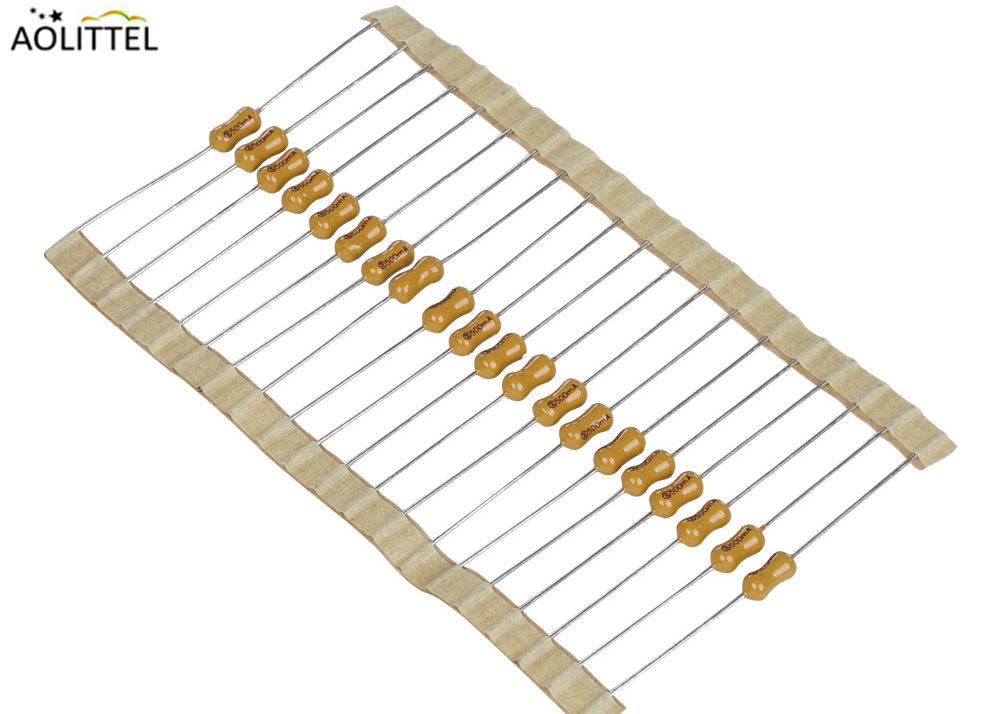

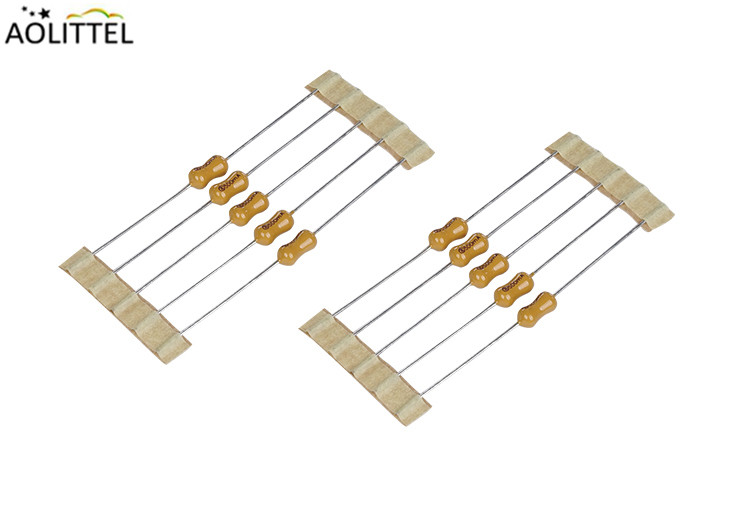

Tape

3000 pcs per inner box(L275±2 * W80±2 * H70±2)

10 inner boxes per outer carton(L420±5 * W290±5 * H160±5)
Bulk

Bulk 500 pcs in per poly bag;

10 poly bags in per inner box(L240±2 * W170±2 * H110±2);

4 inner boxes in per outer carton(L390±5 * W240±5 * H250±5)
