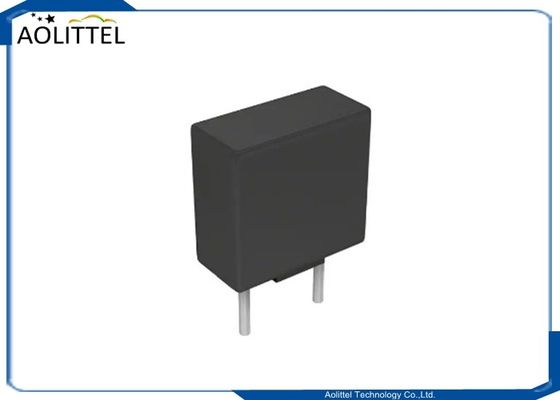

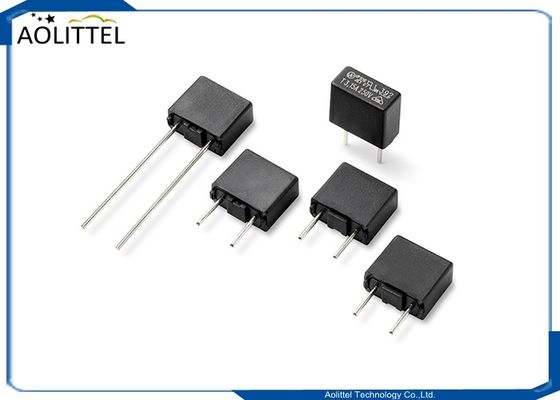

392 Series Radial Lead 250V Rated TE5 Time-Lag Subminiature Fuse 280mA-6.3A VDE UL PSE CQC KC SEMKO
New Change - Very Important
The improvements to the new Red Phosphorous Free parts are listed below:
1. Resin material will exclude “Red Phosphorus” flame retardant. The converted 392 Series fuses will NOT contain “Red Phosphorus” flame retardant (also referred to as Red Phosphorous Free). The type of resin (polyamide) will remain unchanged.

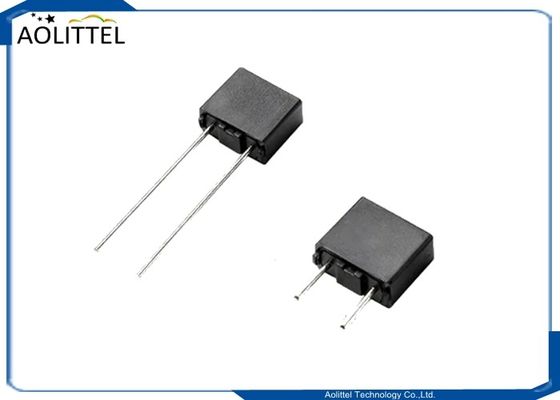

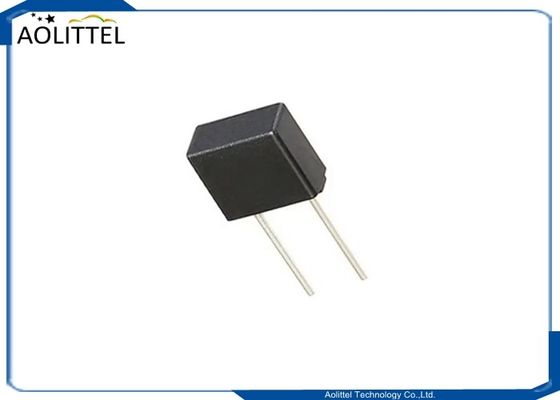

2. The fuse cap and housing color will change from “Red-Brown” to “Black”. The type of resin (polyamide) will remain unchanged. See images below for illustrative purposes.
3. Operating Temperature will increase from “-40degC to 85degC” to “-40degC to 125degC” The type of resin (polyamide) will remain unchanged.
Description
TE5 Fuse, Time-Lag type, 250V rated, designed in accordance to IEC 60127-3.
Features:
Applications:
Electrical Characteristics for Series
| % of Ampere Rating | Opening Time |
| 150% | 1 Hour, Min. |
| 210% | 120 s, Max. |
| 275% | 400 ms Min. ; 10 Sec. Max. |
| 400% | 150 ms Min. ; 3 Sec. Max. |
| 1000% | 20 ms Min. ; 150 ms Max. |
Electrical Characteristic Specifications by Item
| Rated Current | Amp Code | Voltage Rating | Breaking Capacity | Nominal Cold Resistance (Ohms) | Voltage Drop 1.0×IN max. (mV) | Power Dissipation 1.5×IN max. (mW) | Melting Integral 10×IN max. (A2s) |
| 280mA | 0280 | 250V | 35a@250VAC | 0.3300 | 115 | 168 | 0.048 |
| 800mA | 0800 | 250V | 25A@250VAC | 0.0960 | 110 | 280 | 5.120 |
| 1.00A | 1100 | 250V | 25A@250VAC | 0.0715 | 115 | 400 | 8.00 |
| 1.25A | 1125 | 250V | 25A@250VAC | 0.0569 | 100 | 500 | 11.95 |
| 1.60A | 1160 | 250V | 25A@250VAC | 0.0400 | 95 | 600 | 18.43 |
| 2.00A | 1200 | 250V | 25A@250VAC | 0.0298 | 90 | 700 | 29.00 |
| 2.50A | 1250 | 250V | 25A@250VAC | 0.0240 | 85 | 750 | 47.81 |
| 3.15A | 1315 | 250V | 32A@250VAC | 0.0170 | 80 | 1100 | 78.39 |
| 4.00A | 1400 | 250V | 40A@250VAC | 0.0128 | 75 | 1200 | 126.4 |
| 5.00A | 1500 | 250V | 50A@250VAC | 0.0101 | 70 | 1000 | 106.25 |
| 6.30A | 1630 | 250V | 60A@250VAC | 0.0077 | 65 | 1200 | 160.74 |
Notes:
1) 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
2) Resistance is measured at 10% of rated current, 25ºC.
Specificational Datasheet For 392 Seires TE5 Time-Lag Fuse
