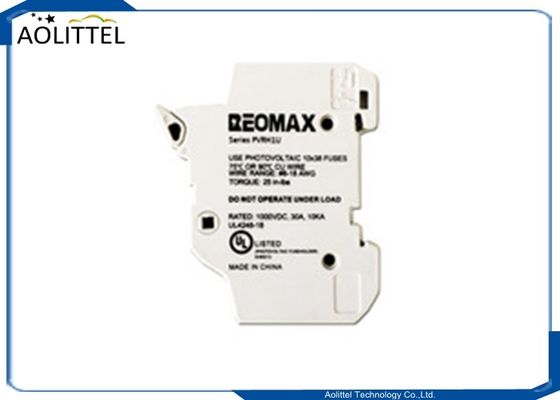

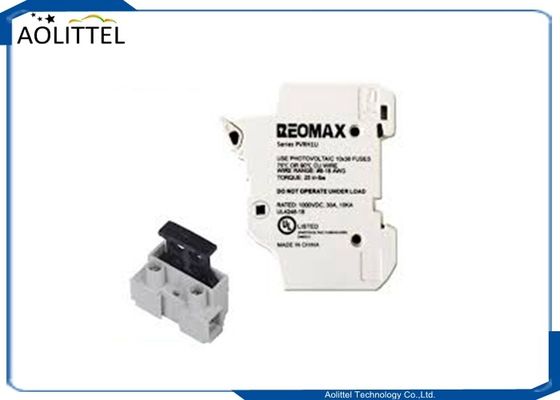

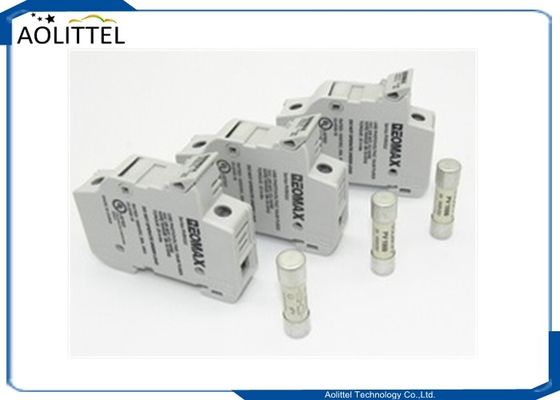

Power Safe 1 Pole 30A Rail Mount Fuse Holder PVRH1U For 10x38 mm Ceramic Tube Solar PV Cartridge Fuse 1000VDC
General
Midget fuse holder are providing protection to personnel when installing and removing fuses due to its touch-safe design. The PVRH1U series is ideal for isolating photovoltaic module strings during maintenance, but is not designed for load break.
1000VDC rating when used with SPF or FLU midget fuse series
Mountable on 35mm Din Rail
Safe and easy installation and removal of fuses - no special fuse pullers or tools required.
Compact design
RoHS compliant and Lead (Pb) free
DIN Standard Fuse Holders
European style surface mount 3 pole fuse load switches/disconnectors for use with NH type industrial HRC fuses.
Description
Agency ratings up to 1000Vdc for use with solar PV fuses.
Rated for use with 75℃ or 90℃ wire, fine stranded wire, spade terminals and comb‐bus bars. Use any higher temperature rated wire with appropriate derating.
Designed to UL 4248‐18
Lead Free and Halogen free material
| Attribute | Value |
|---|---|
| Fuse Size | 10 x 38 mm |
| Current Rating | 30A |
| Voltage Rating | 1000V dc |
| Number of Poles | 1 |
| Case Material | Thermoplastic |
| Compatible Fuse Sizes | 10 x 38 mm |
Features/Benefits
• Touch-safe design offers protection when replacing fuses
• Compact design
• 35 mm DIN Rail Mountable

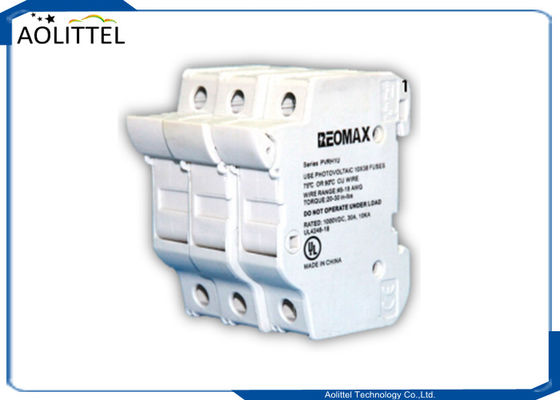

• Available in 1-, 2-, 3- and 4-pole configurations
• No fuse pullers or tools required for fuse removal
• Finger Safe
• DIN Rail Mount
• Compact Footprint
• Quick, Easy Fuse Change
- DIN rail mountable
- Both indicating and non-indicating available
- Available up to 30 Amps
Specifications
| Voltage&Current | 600V/1000VDC, 30A |
| Terminal Rating | Solid, Stranded, Fine Stranded, Spade Lug, Comb Bus Bar; Single and Dual Wire; 75℃ and 90℃ Cu wire |
| SCCR Rating | UL 10kA/1000Vdc; IEC 33kA/1000Vdc |
| Fuse | REOMAX fuse PV1000 series |
| Wire range | #18 to #4 (0.8mm2 to 21.1mm2 ) |
| Torque Ratings | 30 Lb‐In (3.4 N•m) maximum |
| Flammability Ratings | UL 94V0, self‐extinguishing |
| Storage & Operating Temperature Range | ‐20℃ to +120℃ |
Dimension mm(inch)
Modular fuse holders are designed in various versions with fuse indicator, with microswitch, 690V and 24 V DC and come in a combination of microswitch fusing, pre-breaking and fuse link detection. The complete range of versions is available with label holder to ensure good circuit identification. They can be padlocked with the various accessories available with it. IP20 security accessory are available in terminal zones. The fuse holders and microswitch come with accessories for multiple poles assembly.
The compact design unit is used for wires of 10 mm2 section. The fuse holders are composed of high performance polymer with greater than 300 °C of fusion temperature to ensure safety margin against any possibilities of fuse overheating when rated power acceptance of the fuse holder is exceeded. The optimized ventilation zone enhances heat dissipation. Fuse holders include 2 position DIN rail fixations and can be fixed/unfixed on DIN rail with the help of the same screwing tools that are used for cable terminal fixing
