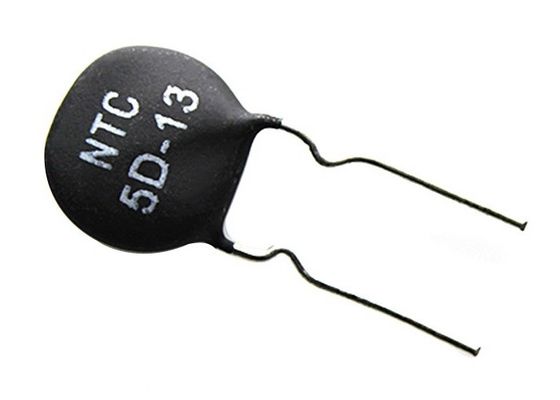

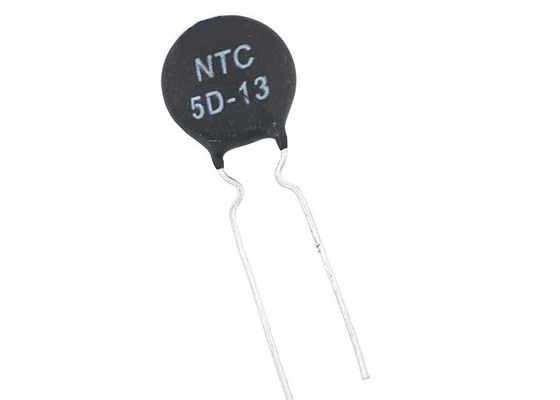

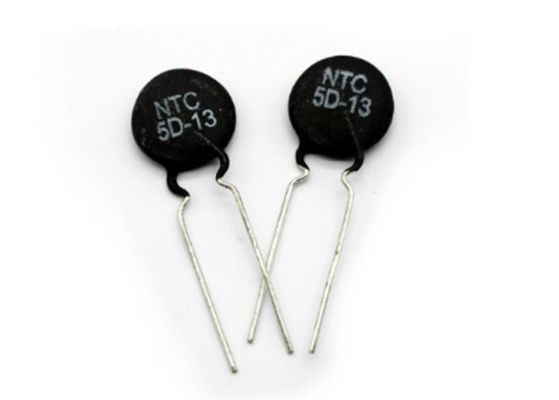

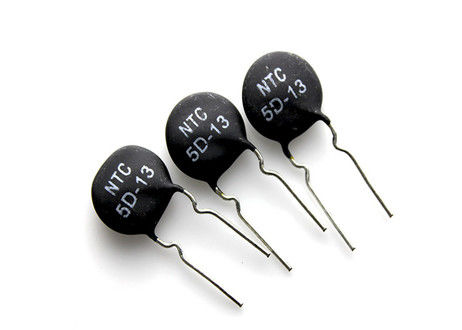

Through Hole NTC 5D-13 MF72 NTC Thermistor Thermal Resistor In Rush Current Limiter 5 Ohms 13mm 5D13 ICL Pitch 7.5mm
Features
1. MF72 series in the form of radial resin coated form.
2. Small dimension, powerful, strong in inrush current limiting.
3. Fast feedback.
4. large material constant, lower residue resistance.
5. Long life, high reliability.
6. Complete part, wide operation range.
7. Operating temperature -55~+200
Application
1. Conversion power, switch mode power supply, UPS power.
2. Energy saving lights, ballast.
3. Electronic circuit, power supply circuit.
Selection Principle
1. Maximum operating current > Actual operating current in the power loop
2 . Rated zero power resistance at 25Cof which, E: loop voltage, Im: Surge current
For conversion power, reversion power, switch power, UPS power, Im=100 times operating current
For filament, heater, Im =30 times operating current
Outlook and Dimension (Unit:mm)
Electrical Performances
| P/N | Rated | (A) | D | L | F | Dimensions | |
Max. Steady | Dmax | Lmin | F±1 | Tmax | d | ||
| 5D-5 | 5 | 1 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
| 10D-5 | 10 | 0.7 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
| 20D-5 | 20 | 0.5 | 6.5 | 25 | 5.0/2.5 | 5 | 0.55/0.45 |
| 5D-7 | 5 | 2 | 8.5 | 25 | 5 | 5 | 0.55 |
| 8D-7 | 8 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
| 10D-7 | 10 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
| 12D-7 | 12 | 1 | 8.5 | 25 | 5 | 5 | 0.55 |
| 16D-7 | 16 | 0.7 | 8.5 | 25 | 5 | 5 | 0.55 |
| 20D-7 | 20 | 0.6 | 8.5 | 25 | 5 | 5 | 0.55 |
| 22D-7 | 22 | 0.6 | 8.5 | 25 | 5 | 5 | 0.55 |
| 33D-7 | 33 | 0.5 | 8.5 | 25 | 5 | 5 | 0.55 |
| 3D-9 | 3 | 4 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 4D-9 | 4 | 4 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 5D-9 | 5 | 3 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 6D-9 | 6 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 8D-9 | 7 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 10D-9 | 10 | 2 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 12D-9 | 12 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 16D-9 | 16 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 20D-9 | 20 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 22D-9 | 22 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 30D-9 | 30 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 33D-9 | 33 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 50D-9 | 50 | 1 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 60D-9 | 60 | 0.8 | 10.5 | 25 | 7.5/5.0 | 5.5 | 0.78/0.55 |
| 2.5D-11 | 2.5 | 5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 3D-11 | 3 | 5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 4D-11 | 4 | 4 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 5D-11 | 5 | 4 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 6D-11 | 6 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 8D-11 | 8 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 10D-11 | 10 | 3 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 12D-11 | 12 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 16D-11 | 16 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 20D-11 | 20 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 22D-11 | 22 | 2 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 30D-11 | 30 | 1.5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 33D-11 | 33 | 1.5 | 12.5 | 25 | 7.5/5.0 | 5.5 | 0.78 |
| 1.3D-13 | 1.3 | 7 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 1.5D-13 | 1.5 | 6 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 3D-13 | 3 | 6 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 4D-13 | 4 | 5 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 5D-13 | 5 | 5 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 6D-13 | 6 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 7D-13 | 7 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 8D-13 | 8 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 10D-13 | 10 | 4 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 12D-13 | 12 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 15D-13 | 15 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 16D-13 | 16 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 20D-13 | 20 | 3 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 30D-13 | 30 | 2.5 | 14.5 | 25 | 7.5 | 6 | 0.78 |
| 47D-13 | 47 | 2 | 14.5 | 25 | 7.5 | 6 | 0.78 |
