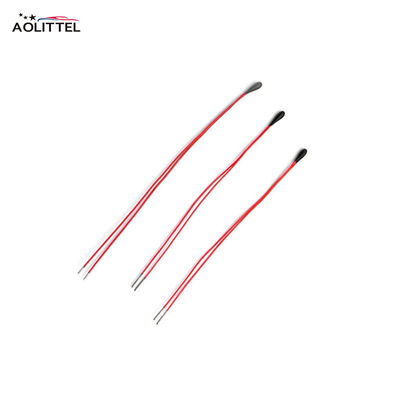

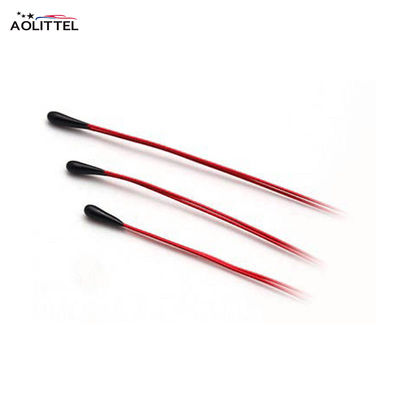

II Features Of The MF51 NTC Thermistor
■ Glass-sealed bead provides High-level heat resistance and high environmental Stability
■ Proven long term Reliability with low power requirement
■ Smaller size , High Sensitivity and Faster thermal response than conventional thermistors
■ Operation from -50˚C up to 300˚C
■ Values from 2186Ω to 1.38MΩ at 25˚C
■ Standard tolerance of ±3% at rated temp
■ Temperature measurement and control
■ High temperature stability
■ Glass encapsulation provides resistance to moisture and other environmental factors
■ Available in ceramic reinforced glass body or glass bead configurations
III Applications Of The MF51 NTC Thermistor
■ Automotive (water, intake air, ambient, battery, motor and fuel) , hybrid vehicles, fuel cell vehicles, automotive electronics
■ Assembly into various probes of Temperature sensors
■ General Instrumentation applications
■ Temperature measurement and control commonly used in HVAC applications, water heaters, microwave ovens, home appliances
■ Temperature control in common household appliances such as coffee makers, ovens, and refrigerator’s.
■ Industrial applications may include monitoring battery pack terminal temperature while in a charge state.
■ Medical applications that rely on airflow such as respirators.
■ Outdoor applications such as infrared lighting systems.
IV Dimensional Drawing Of The MF51 NTC Thermistor (unit:mm)
| Part number | D | H | L | d |
| MF51-A | 2.0±0.2 | 3.8±0.5 | ≥40 | 0.25±0.02 |
| MF51-B | 1.6±0.2 | 3.2±0.5 | ≥60 | 0.25±0.02 |
| MF51-C | 1.2±0.2 | 2.4±0.5 | ≤60 | 0.25±0.02 |
V Main Parameters Of The MF51 NTC Thermistor
| Part number |
Dissi.Coef. mW/℃ |
Thermal time constant sec |
Pmax mW |
| MF51-A | ≈1.4 | ≈14 | 50 |
| MF51-B | ≈0.9 | ≈7 | 35 |
| MF51-C | ≈0.75 | ≈5 | 15 |
VI Specification Of The MF51 NTC Thermistor
| NO. | Part number | Rated Resistance R25 | B Value(25/85℃) | Tolerance | |||
| R25(KOhm) | Tolerance | B Value | |||||
| Normal model | MF51□□□3435 | 2~10 |
±1％ ±2％ ±3％ ±5％ |
3435 |
±1％ ±2％
|
||
| MF51□□□3450 | 2~10 | 3450 | |||||
| MF51□□□3750 | 8~10 | 3750 | |||||
| MF51□□□3950 | 10~50 | 3950 | |||||
| MF51□□□4150 | 50~100 | 4150 | |||||
| MF51□□□4200 | 100~350 | 4200 | |||||
| MF51□□□4350 | 870~980 | 4350 | |||||
| MF51□□□4450 | 1000~1500 | 4450 | |||||
| Special model | MF51□□□3420 | R25=2.186 R0=6 |
±2％ ±3％ ±5％ |
3420(B0/100=3390) |
±1％ ±2％ |
||
| MF51□□□3480 | R25=5.369 R0=15 | 3480(B0/100=3450) | |||||
| MF51□□□3992 | R25=49.12 R100=3.3 | 3992(B0/100=3970) | |||||
| MF51□□□4066 | R25=98.63 R200=0.55 | 4066(B0/100=4300) | |||||
| MF51□□□4240 | R25=231.4 R200=1 | 4240(B0/100=4537) | |||||
