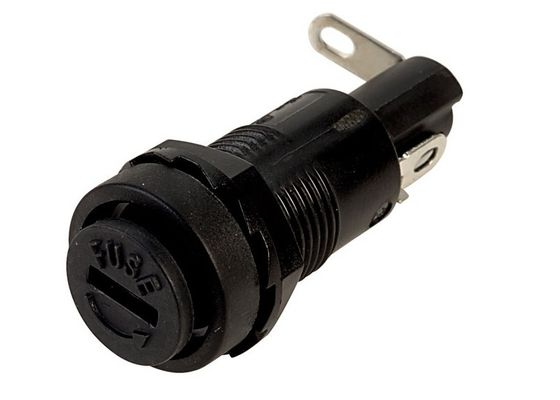

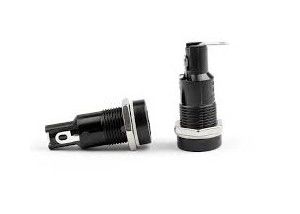

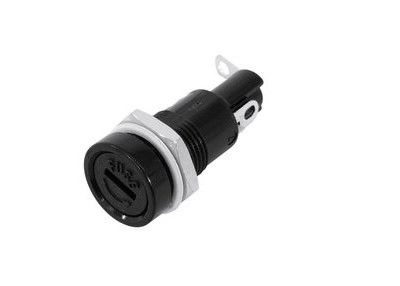

1 Pole Classic Flat Very Low Profile Bayonet PCB Fuse Holder Block R3-11 For 5x20mm Glass Fuse 10A 250V
Description
Panel mount fuse holders are a device that provides a housing for a fuse to act as safety device within a wiring circuit for when power loads exceed the safe level for electronic components.
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
Features and Benefits of Panel Mount Fuse Holders
• Reduce risk of damage to electrical components
• Fully enclosed plastic casing
• Small, compact and neat
• Wide variety of fuse sizes available to suit any application
Where might I use one?
• Lighting
• Illuminated signs
• Vehicle electrical circuits
• general circuit protection
Quick details
| Product Name | PCB Fuse Holder |
| P/N | R3-11 |
| Voltage breakdown | AC2500 1minute |
| Insulation resistance | DC 500V 100MΩ |
| Rating Values | 10A 250VAC |
| Temperature range | -20℃ -150 ℃ |
| Flammability class | UL94V0 |
| Standard | IEC-60335-1 GB_9364.6-2001 |
| Certification | ISO9001, ROHS, |
| Mounting | PCB Mount |
| Material | Thermosetting glue, Brass |
| International Approvals | CE, CQC, UL,VDE |
| Fuse size | 5*20mm Glass Fuse |
| Application | It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment. |
Dimension (mm)
R3-11 solder fuse box
Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.
Fuse holders are suitable for protection against overloads and short circuits.
Aolittel offer fuse-holder and fuse part for 15 years. Now Daier have glass fuse holder and inline fuse holder.
Good glass fuse-holder fits 5x20mm, 6x30mm and 10x38mm grass fuse.
Quality rubber fuse-holder fits ATC/ATO size fuses. Holds and encloses fuse securely. Hinged cover protects fuse from impact, water and dust. 12-inch wire loop is made of 18 gauge flexible stranded red wire.
Pls check the datasheet below:
| Rating: | 10A 250VAC | Contact Resistance: | 35mΩ max |
| Electrical Life: | ≥ 200 Cycles | Mechanical Life: | ≥ 5,000 Cycles |
| Dielectric strength: | 1500VAC 50Hz 1 minute | Operating Temperature: | -55℃~+85℃ |
| Fuse Size: | 5x20mm | OEM or ODM: | Available |
