Slotted Cap Fingergrip Shock-Safe Vertical Mount PCB Fuse Holder H3-02 10A 250VAC For 5x20mm Cylindrical Glass Tube Fuse
Why are PCB mounts important ?
Fuses need to be protected because they themselves protect circuits from over current conditions. For example, if a circuit receives too high a level of current, the fuse will burn out, breaking the circuit. With a PCB mount, your fuse is protected and you can easily change it if required.
Applications
- Household appliances
- Medical equipment
Description
PCB mounts, or fuse holders, provide the installation hardware for a fuse. They are used in circuits to contain, protect and mount fuses. They are usually designed so that the wrong fuse cannot be placed in the mount, with a tab preventing accidental misuse.
Types of PCB mounts
PCB mounts come in two basic types, open or fully enclosed. Open PCB mounts include fuse clips, fuse blocks, socket and plug-on cap varieties. The fully enclosed variety may use a fuse carrier that is inserted into a holder or may use other means to fully enclose the fuse.
Both open and enclosed PCB mounts are available with a range of terminal styles including quick disconnect, solder and angled versions.
Main Parameters
|
Product Name |
PCB Fuse Holder |
|
P/N |
H3-02 |
|
Voltage breakdown |
AC2500 1minute |
|
Insulation resistance |
DC 500V 100MΩ |
|
Rating Values |
10A 250VAC |
|
Temperature range |
-20℃ -150 ℃ |
|
Flammability class |
UL94V0 |
|
Standard |
IEC-60335-1 GB_9364.6-2001 |
|
Certification |
ISO9001, ROHS, |
|
Mounting |
PCB Mount |
|
Material |
Thermosetting glue, Brass |
|
International Approvals |
CE, CQC, UL,VDE |
|
Fuse size |
5x20mm Fuse |
|
Application |
It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment. |
Dimension (mm)

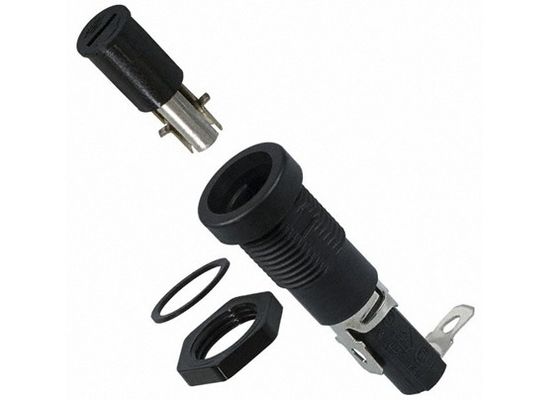

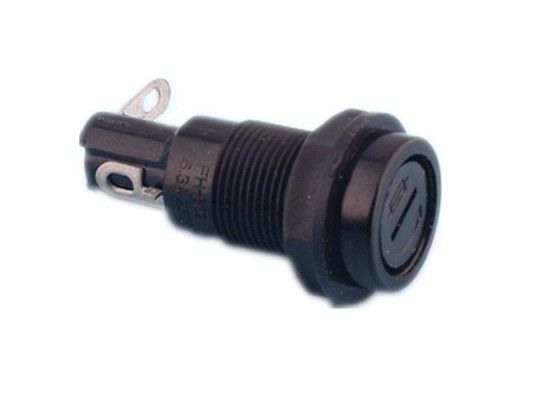

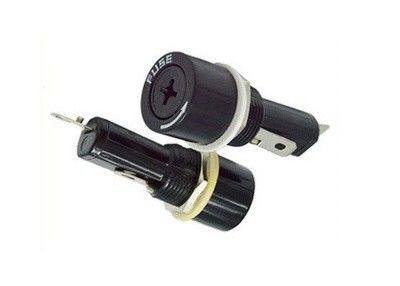

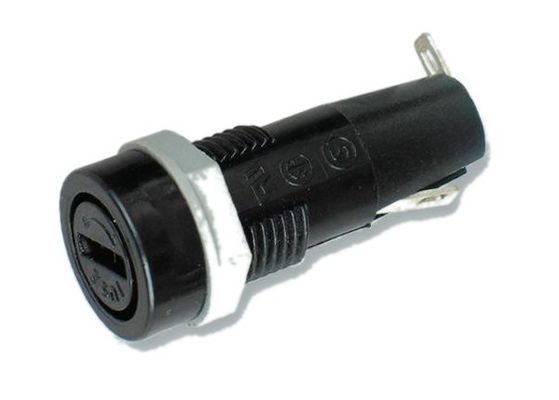

Actual Product Photos
Derating Curves
Features
PCB fuse holder, 5x20mm fuse size, 10A current rating, 250V voltage rating, PCB mount, nickel plated brass contact, phenolic body, black, bayonet cap, 36.5mm high, 12mm diameter, this fuse holder is ideal for vertical mounting to PCBs, body and cap moulded from phenolic, cap may be removed by screwdriver or finger release, UL flame 94V-1 approved.
Accepts 5 x 20mm fuses
Rated 10A 250V AC
Body and cap moulded from phenolic
Cap may be removed by screwdriver or finger release
Nickel plated brass terminals
Dimensions 36.5 x 12mm
UL flame 94V-1 approved
