ISO8820-3 Standard BFMN-1225 Automotive Car ATM Mini Blade Fuse 25A 32V Natural 11mm For In-line Fuse Holder Adapter
Description
| Ampere Rating(A) | Part Number | Housing Colors | Resistance Value | Voltage Drop |
| 1A | 1281 | Black | 121 mΩ | 175 mV |
| 2A | 1202 | Gray | 49.7 mΩ | 140 mV |
| 3A | 1203 | Violet | 29.6 mΩ | 140 mV |
| 4A | 1204 | Pink | 23.8 mΩ | 136 mV |
| 5A | 1205 | Tan | 16.7 mΩ | 112 mV |
| 7.5A | 1207 | Brown | 11.1 mΩ | 112 mV |
| 10A | 1210 | Red | 7.82 mΩ | 106 mV |
| 15A | 1215 | Blue | 4.93 mΩ | 99 mV |
| 20A | 1220 | Yellow | 3.48 mΩ | 95 mV |
| 25A | 1225 | White(natural) | 2.58 mΩ | 92 mV |
| 30A | 1230 | Green | 2.12 mΩ | 86 mV |
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 110% | 100 hrs. | - |
| 135% | 0.75 sec. | 600(120) sec. |
| 160% | 0.25 sec. | 50 sec. |
| 200% | 0.15 sec. | 5 sec. |
| 350% | 0.04 sec. | 0.5 sec. |
| 600% | 0.02 sec. | 0.1 sec. |

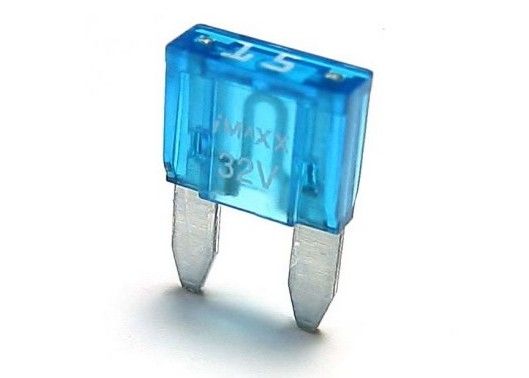

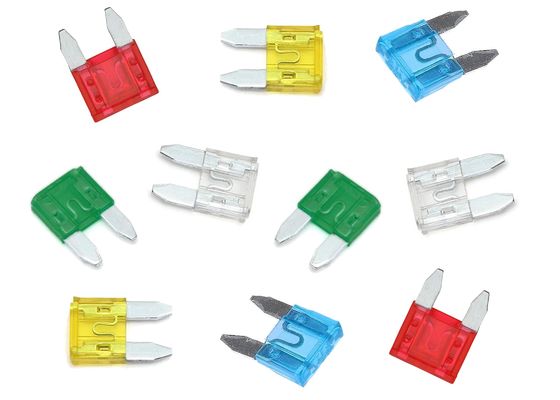

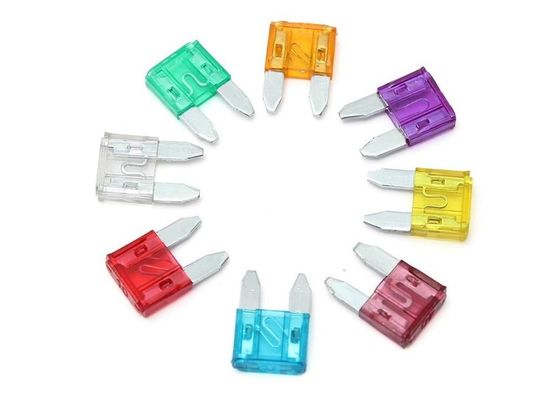

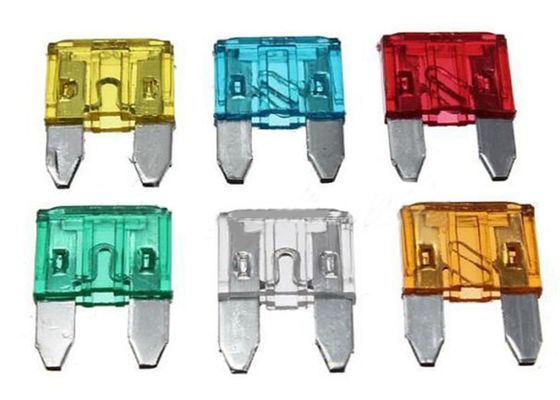

This miniature blade-mounting automotive fuse is rated 25 amps.
The white color represents the amperage.
It's used in many late-model cars and vans.
Simple blade design for easy installation
Applications
| Truck & Bus |
On-Highway Transit Buses Severe Duty Vocational |
|
| Material Handling |
Fork Lifts Aerial Work Platform Telehandlers Pallet Jacks |
|
| Automotive Passenger Car |
OEM Maintenance Motorsports Fleets |
|
| Municipality |
Emergency Fire & Rescue Waste Trucks Utility |
|
| Construction & Agriculture |
Loaders Excavators Tractors Harvesters |
|
| Marine & Recreational |
Boats & Marine Recreation Vehicles Golf Carts ATV & Snowmobiles |
|
What Type of Fuse do I Need?
DC (automotive) fuses are offered in two basic forms: Blade or Bolt Down.
Blade & Cartridge fuses can be hand inserted into a fuse holder. These fuses provide protection for several amperage ratings up to 80A. They are well suited to protect smaller to medium diameter wires that are usually some distance from the battery. Single blade fuse holders are often called ‘In-Line’ fuse holders as they are spliced into the wiring. Remember to place the fuse holder as close to the battery and as far away from the load as possible, so that it protects the wire from a short anywhere along its length. Any short between the power source and the fuse is not protected.
Bolt Down fuses need to be secured to the fuse holder with a screw, nut or bolt. These fuses provide protection from 30A to 600A. They are well suited to protect medium to large diameter wires that are usually closer to the battery. Ring terminals are crimped onto cables that are connected to these holders and spliced into the wiring. Remember to place the fuse holder as close to the battery and as far away from the load as possible, so that it protects the wire from a short anywhere along its length. Any short between the power source and the fuse is not protected which is why you should have master fusing as close the battery as possible.
It Glows When it Blows!
SmartGlow® fuse technology makes identifying an open circuit quick and easy. Inside a fuse box, it can be difficult to locate which fuse in an array has blown. You can easily identify the SmartGlow because it lights up, indicating the need for replacement. Available in MINI, ATO, and MAXI blade fuses.
Every Fuse Requires a Fuse Holder!
Aolittel offers a wide variety of fuse holder and power distribution modules in different configurations to meet unique needs. Please see the Power Distribution Modules or Fuse Blocks & Holders sections of the catalog to select a product that fits your application requirements.
