FLF 30 High Amp Female Termination Slow Blow Fusible Auto Fuse Link 32V 30A Pink For Japanese-designed Vehicles
Description

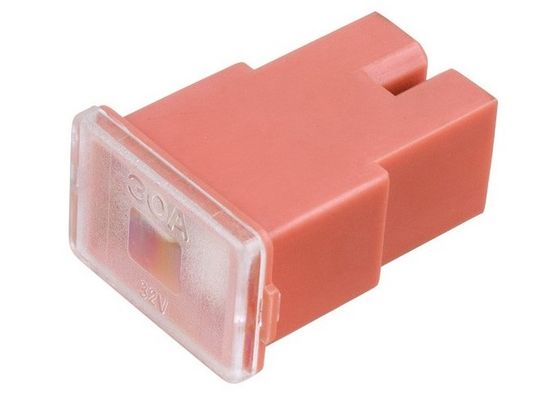

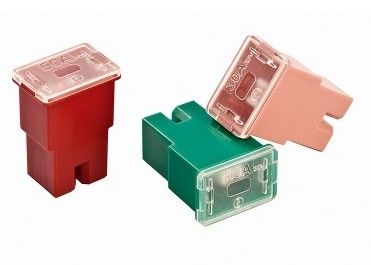

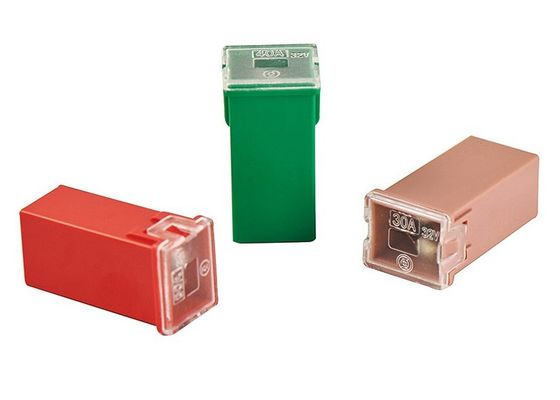

Designed to meet aftermarket OEM requirements , offering high ampere 20A-100A ratings in compact package.Operation standards: JASO D612 / ISO 8820-4 . FLF Series Female Terminal Fusible Links are used primarily in Japanese-designed vehicles for wiring harness protection .Color-coded molded plastic housing allows quick identification of amp rating.30 Amp (Pink), 32 Vdc.Includes convenient viewing window for verifying link status.
Specifications
* Slow-Blow Auto Fuse Link
* Interrupting Rating:1000A@32VDC
* Voltage Rating : DC32V or less
* Material:
1. Brass
2. Nylon With Glass Fiber / PC
3. Ceramic
* Standards:
* Complies with JASO D612 / ISO 8820-4
* Operating Temperature Range : -40 C to +125 C
Dimension in mm
Time-Current Characteristics
| Test Current | Opening Time | |
| Min. | Max. | |
| 110% | 4 hrs. | --- |
| 150% | 30 s | 3600 s |
| 200% | 5 s | 100 s |
| 350% | 0.2 s | 7 s |
| 600% | 0.04 s | 1 s |
Part Numbering
| Item No. | Ampere | Color |
| FLF 20 | 20 A | |
| FLF 30 | 30 A | |
| FLF 40 | 40 A | |
| FLF 50 | 50 A | |
| FLF 60 | 60 A | |
| FLF 70 | 70 A | |
| FLF 80 | 80 A | |
| FLF 100 | 100 A |

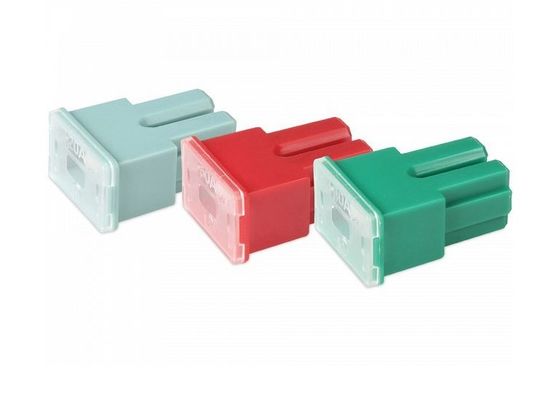

Related Product Series Photos
|
FLF |
FLF-S |
|
FLF-M |
FLF-E |
|
FLF-N |
FLM |
|
FLB |
FLB-S |
|
FLM-NP |
FLM-KP |
Fuse Kits & Assortments
| Packing No. : 330010 | 10 pcs / plastic box, 1,000 pcs / ctn / 1.3' 10.5 / 11.5 kgs |
|
| Packing No. : 310100 | (only for FLF-M FLF-E FLF-N) 100 pcs / color box, 2,000 pcs / ctn / 1.4' 9 / 10 kgs |
|
| Packing No. : 310050 | 50 pcs / color box, 1,000 pcs / ctn / 1.4' 9 / 10 kgs |
|
| Packing No. : E-103L | 26 pcs / pp box, 520 pcs / ctn / 1.5' (20 boxes / ctn) 7.5 / 8.5 kgs Box's Size : 18.8 x 14.2 x 4.2 cm Contents : (26 pcs) FLF-S 6 pcs FLF-M 10 pcs FLM-KP 2 pcs FLM 4 pcs FLB 4pcs |
|
| Packing No. : E-202L | 37 pcs / pp box, 740 pcs / ctn / 1.0' (20 boxes / ctn) 8.5 / 9.5 kgs Box's Size : 20 x 14.5 x 3.7 cm Contents : (37 pcs) FLB 4 pcs FLB-S 4 pcs FLM 6 pcs FLF 8 pcs FLF-S 6pcs FLF-M 9 pcs |
|
