Circuit Protection Components 5x20mm 2.5A 250VAC Speed F Fast-acting Glass Tube Cartridge Fuse For Power Supplies
Specification
| Part No. |
Ampere Rating |
Voltage Rating |
Breaking Capacity |
I2TMelting Integral(A2.S) |
| SFC0100A/B | 100mA | 250V/125V |
10000A@125 V AC (200mA~10A);
35A@250V AC (200mA~1A);
100A@250V AC (1.25A~3.5A);
200A@250V AC (4A~10A).
|
0.002 |
| SFC0125A/B | 125mA | 250V/125V | 0.003 | |
| SFC0160A/B | 160mA | 250V/125V | 0.005 | |
| SFC0200A/B | 200mA | 250V/125V | 0.01 | |
| SFC0250A/B | 250mA | 250V/125V | 0.02 | |
| SFC0300A/B | 300mA | 250V/125V | 0.04 | |
| SFC0315A/B | 315mA | 250V/125V | 0.045 | |
| SFC0350A/B | 350mA | 250V/125V | 0.055 | |
| SFC0400A/B | 400mA | 250V/125V | 0.07 | |
| SFC0500A/B | 500mA | 250V/125V | 0.1 | |
| SFC0630A/B | 630mA | 250V/125V | 0.2 | |
| SFC0750A/B | 750mA | 250V/125V | 0.35 | |
| SFC0800A/B | 800mA | 250V/125V | 0.45 | |
| SFC1100A/B | 1A | 250V/125V | 0.9 | |
| SFC1125A/B | 1.25A | 250V/125V | 1.3 | |
| SFC1150A/B | 1.5A | 250V/125V | 1.6 | |
| SFC1160A/B | 1.6A | 250V/125V | 2.5 | |
| SFC1200A/B | 2A | 250V/125V | 5.8 | |
| SFC1250A/B | 2.5A | 250V/125V | 7.6 | |
| SFC1300A/B | 3A | 250V/125V | 8.1 | |
| SFC1315A/B | 3.15A | 250V/125V | 11 | |
| SFC1350A/B | 3.5A | 250V/125V | 19 | |
| SFC1400A/B | 4A | 250V/125V | 28 | |
| SFC1500A/B | 5A | 250V/125V | 40 | |
| SFC1600A/B | 6A | 250V/125V | 50 | |
| SFC1630A/B | 6.3A | 250V/125V | 64 | |
| SFC1700A/B | 7A | 250V/125V | 107 | |
| SFC1800A/B | 8A | 250V/125V | 133 | |
| SFC2100A/B | 10A | 250V/125V | 242 | |
| SFC2120A/B | 12A | 250V/125V | - | |
| SFC2150A/B | 15A | 250V/125V | - | |
| SFC2160A/B | 16A | 250V/125V | - | |
| SFC2200A/B | 20A | 250V/125V | - |
Dimension (mm)
 |
|
Selection Factors
| 1 | Normal operating current |
| 2 | Application voltage (AC or DC) |
| 3 | Ambient temperature |
| 4 | Overload current and length of time in which the fuse must open |
| 5 | Maximum available fault current |
| 6 | Pulses, Surge Currents, Inrush Currents, Start-up Currents, and Circuit Transients |
| 7 | Physical size limitations, such as length, diameter, or height |
| 8 | Agency Approvals required, such as UL, CSA, VDE, METI, MITI ,CQC,KC,PSE,SGS ,CCC or Military |
| 9 | Fuse features (mounting type/form factor, ease of removal, axial leads, visual indication, etc.) |
| 10 | Fuseholder features, if applicable and associated rerating (clips, mounting block, panel mount, PC board mount, R.F.I. shielded, etc.) |
| 11 | Application testing and verification prior to production |
Quick Details

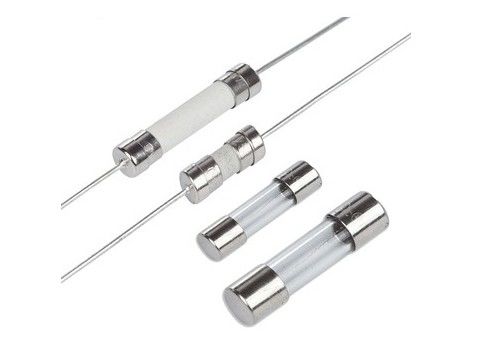

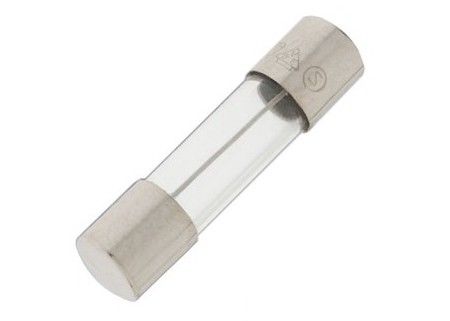

Aolittel SFC 5 x 20 fuses offer primary protection for electrical circuits. These fuse can be used in conjunction with aolittel fuse holders to increase the mounting types and applications.
Fast-acting fuses.
Low breaking capacity.
Glass tube, protected terminals.
